LSAW vs Seamless Pipe for Large Diameter Pipelines — Selection Guide

For large diameter transmission pipelines — OD 16 inches and above — the choice between LSAW and seamless pipe is driven by OD capability, wall thickness requirements, grade availability, cost, and project specification. In practice, the decision for most large diameter projects is straightforward: LSAW dominates above 16 inches for economic and technical reasons, while seamless retains a role in specific niche applications within the large diameter range where weld seam absence is valued.

ZC Steel Pipe supplies both LSAW and seamless line pipe for large diameter pipeline projects in grades X52 through X80, PSL1 and PSL2, with FBE, 3LPE, 3LPP, and CWC coating. We supply to pipeline projects across Africa, South America, and the Middle East. This guide covers the technical and economic case for LSAW vs seamless for large diameter pipelines.

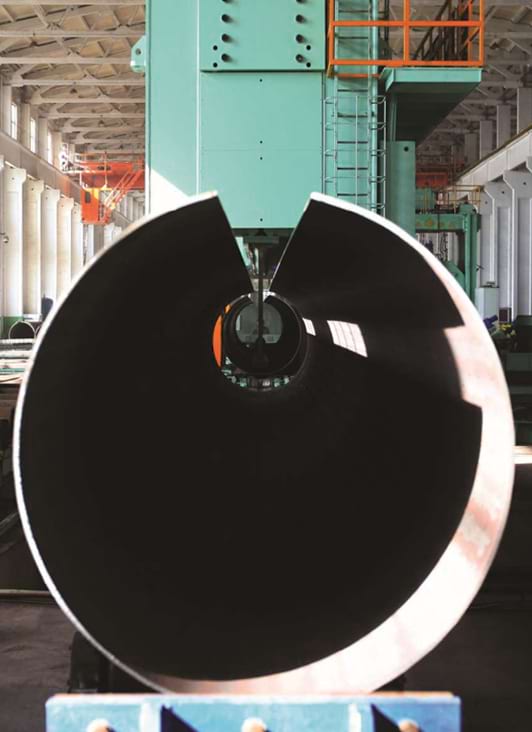

1. OD and Wall Thickness Capability

The fundamental capability difference between LSAW and seamless for large diameter pipe:

Above 24 inches OD, seamless is essentially unavailable commercially and LSAW is the only option. Between 16 and 24 inches, both are technically feasible but LSAW is substantially cheaper.

2. Grade Availability for Large Diameter Pipe

X70 and X80 are produced almost exclusively as LSAW. The thermomechanical rolling of heavy plate is better suited to achieving the microstructure required for these grades than the hot expanding process used for large diameter seamless pipe.

3. Mechanical Properties — Seamless vs LSAW

For the same API 5L grade and PSL level, mechanical property requirements are identical. However there are practical differences:

Yield strength consistency: LSAW from thermomechanical plate typically shows tighter yield strength distribution than seamless large diameter pipe. The controlled rolling of plate provides more uniform microstructure than hot expanding of seamless mother tube. For X70M and X80M, the TM process is essential to achieving the required combination of high strength and high toughness.

Charpy impact toughness: PSL2 LSAW pipe must meet Charpy requirements for both the pipe body and the weld seam (including HAZ). Seamless PSL2 pipe requires only pipe body Charpy testing. Modern LSAW mills consistently achieve excellent Charpy values in both body and weld for X65 and X70 grades.

Yield-to-tensile ratio: PSL2 controls the maximum yield-to-tensile ratio to 0.93. LSAW from controlled chemistry plate achieves this consistently. Some seamless large diameter producers have more difficulty controlling the Y/T ratio for higher strength grades.

For the complete PSL1 and PSL2 grade tables, see the API 5L specification tables → and the ASME B36.10M pipe schedule chart →

To calculate design pressure or minimum wall thickness for your pipeline, use the Pipeline Design Calculator →

4. Wall Tolerance — Worked Calculation and Design Margin Impact

The wall tolerance difference between LSAW and seamless is not a theoretical concern. It directly affects the design margin available at MAOP for every joint in the pipeline. Here is the worked calculation for 24-inch X65M PSL2 at a typical Sub-Saharan Africa gas transmission MAOP.

Inputs:

• OD: 609.6mm (24-inch)
• Grade: X65M, SMYS = 450 MPa
• Nominal wall specified: 14.3mm
• MAOP: 12.0 MPa
• Design code: ASME B31.8, Class 1 Division 1, design factor F = 0.72

Step 1 — Design minimum wall (Barlow formula):

Design minimum wall = MAOP × OD / (2 × SMYS × F) = 12.0 × 609.6 / (2 × 450 × 0.72) = 11.29mm

Step 2 — Minimum actual wall after tolerance:

Both pass MAOP design — the minimum actual wall for both pipe types exceeds the design minimum of 11.29mm. However, cold-expanded LSAW provides 3.2% additional design margin above the seamless minimum at the same nominal wall specification. For a pipeline operating near the top of its MAOP envelope, that 3.2% margin is not negligible. It is also not recoverable without specifying a heavier nominal wall — which adds cost and weight to every joint in the 80km mainline.

The practical implication: if the project specifies seamless for a 24-inch X65 mainline in the belief that seamless provides higher dimensional integrity, the specification is achieving the opposite of its intent relative to wall tolerance. Check your actual design margin using the Pipeline Design Calculator →.

5. Weld Seam — Risk and Mitigation

The LSAW longitudinal weld seam is the primary technical concern that drives some specifications to prefer seamless. The actual risk is well-managed by modern LSAW production:

Weld seam NDE:

• 100% full-length ultrasonic testing of weld seam — both manual and automated
• 100% radiographic testing of weld repair areas
• Automated online UT systems inspect the weld in real time during production
• End area UT at both pipe ends

Cold expansion: LSAW pipe is cold expanded 0.8–1.5% after welding. Cold expansion relieves residual weld stress, improves OD roundness, and provides a proof test of the weld — any weld defects that survive UT inspection tend to open during cold expansion and are detected.

Weld procedure qualification: LSAW mills qualify their welding procedures per API 1104 or equivalent, with destructive weld tests (tensile, bend, Charpy) demonstrating weld performance meeting or exceeding pipe body requirements.

The combination of controlled chemistry, automated NDE, and cold expansion makes modern LSAW weld quality highly reliable for transmission pipeline service.

6. Named Failure Modes for Large Diameter Pipe

Failure Mode 1: LSAW Weld Seam HAZ SSC in Sour Service — HAZ Hardness Not Specified

Mechanism: Standard PSL2 LSAW pipe does not explicitly control HAZ hardness — only weld seam mechanical properties (Charpy, tensile) are required. In sour gas service, the HAZ of the LSAW longitudinal weld seam is the highest-risk location for SSC initiation. If the SAW welding parameters produce a HAZ hardness above 250 HV10 (22 HRC), hydrogen absorption from H2S corrosion can initiate SSC in the HAZ under the residual stress from welding — without any additional applied tensile load. Because the LSAW seam is longitudinal, SSC in the HAZ propagates in a circumferential direction — potentially penetrating the full wall.

Diagnostic: Circumferential cracking at or adjacent to the LSAW weld seam, typically within 12–18 months of H2S service. Hardness traverse of the failed joint shows HAZ hardness exceedance above 250 HV10. MTC shows no HAZ hardness testing result.

Fix: For sour service LSAW, add to PO: "Weld seam HAZ hardness ≤ 250 HV10 (22 HRC) by Vickers traverse across the full weld cross-section including HAZ, per heat qualification." Verify in the mill's weld procedure qualification records. This requirement does not appear in standard PSL2 and must be explicitly ordered.

Failure Mode 2: Seamless Large Diameter with Wide Wall Tolerance — Thin-Wall Section in Service

Mechanism: API 5L permits ±12.5% wall tolerance for seamless pipe in most OD and weight combinations. For a 24-inch X65 pipe specified at 14.3mm nominal wall, the minimum delivered wall per this tolerance is 12.51mm. The design minimum wall (ASME B31.8, F = 0.72) at 12.0 MPa design pressure is 11.29mm. The margin between actual minimum wall and design minimum wall is 10.8% — acceptable, but less than what cold-expanded LSAW provides with ±10% tolerance (14.0% margin). If the pipeline is operated near the top of its allowed MAOP range, individual seamless joints at minimum wall tolerance provide minimal margin above the design hoop stress.

Diagnostic: Design review of pipe wall tolerance reveals that minimum measured wall at ILI survey is approaching 12.5mm in some joints. Calculation confirms these joints have less than 10% margin above design MAOP. MTC shows nominal wall 14.3mm — tolerance assessment was not performed at procurement.

Fix: For pipelines operating near maximum MAOP (design factor > 0.65), specify a minimum wall above nominal-minus-tolerance. State on the PO: "Minimum wall thickness [specified mm] — not nominal; actual minimum to be recorded on MTC and verified by wall thickness log." Consider specifying cold-expanded LSAW for its tighter ±10% tolerance.

Failure Mode 3: LSAW from Non-Cold-Expanded Mill — Weld Proof Test Absent

Mechanism: Cold expansion after welding is not universally required by API 5L for all LSAW pipe sizes — it is required for pipe above a certain OD and is verified by the "E" in the pipe designation (e.g., "LSAW CE"). A mill producing LSAW without post-weld cold expansion saves the expansion step cost, but also eliminates the proof test that would open any surviving weld defects. In this pipe, a subsurface weld defect below the UT calibration threshold — a small lack-of-fusion zone at the weld root — remains undetected. In service, cyclic pressure loading from compressor operations eventually opens the defect and it propagates to failure.

Diagnostic: Weld seam leakage or fracture at the LSAW longitudinal seam, at a defect location not visible on the original UT records. Post-failure examination confirms a subsurface weld defect at the root pass. Mill documentation does not show a cold expansion step.

Fix: For PSL2 transmission pipeline pipe, specify "post-weld cold expansion required" on the PO for all LSAW above 16-inch. Verify cold expansion by requesting the mill's dimensional inspection records showing OD before and after expansion. Reject LSAW from mills that cannot document a cold expansion process.

7. Cost Comparison

For large diameter pipe, LSAW offers significant cost advantages over seamless:

These are approximate differentials — actual pricing depends on market conditions, plate availability, and order quantity. The cost advantage of LSAW increases with OD and is the primary economic driver for its dominance in large diameter pipeline supply.

8. When NOT to Specify LSAW for Large Diameter Applications

The default for onshore large diameter mainline transmission pipe is LSAW — it is the economically correct choice, manufactured correctly for the load case, and modern mills with automated NDE and cold expansion produce consistent, reliable pipe. Seamless is the exception, reserved for specific applications where the absence of a weld seam directly addresses a failure mode (fatigue on risers, bending on induction bends). "Seamless preferred" as a blanket specification for large diameter onshore pipe is an engineering anachronism.

9. Selection Guide — LSAW vs Seamless for Large Diameter

10. Sour Service Specification for Large Diameter LSAW

Large diameter sour service LSAW pipelines require specific additional testing beyond standard PSL2:

For sour service LSAW, the weld HAZ hardness requirement (22 HRC maximum) is critical and must be specifically verified — standard PSL2 does not explicitly control HAZ hardness in all grades.

11. Procurement Trap — Wrong and Correct PO Language

Procurement language for large diameter pipe determines what the mill ships and what documentation you receive. The most common error is a vague or contradictory type specification.

Wrong PO: "24-inch X65 PSL2, 14.3mm wall, seamless preferred, EN 10204 3.2, 80km"

What the mill ships: LSAW (seamless at this size and quantity is either unavailable in the lead time or 35% more expensive). The "seamless preferred" instruction was ignored because it cannot be fulfilled commercially. No documented engineering reason for seamless. Project team accepts LSAW under commercial pressure but leaves the specification record inconsistent.

Correct PO: "24-inch (609.6mm OD) API 5L X65M PSL2 per API Specification 5L, 46th Edition, LSAW, cold-expanded (CE), wall 14.3mm minimum, delivery condition M (thermo-mechanically rolled), Charpy CVN at [specify temperature] per PSL2, 100% pipe body UT + 100% weld seam UT + post-expansion visual inspection, wall tolerance ±10% (PSL2), EN 10204 3.2 MTC with named TPI, FBE/3LPE coating per separate specification, Range R2, 80km."

The correct PO removes ambiguity on pipe type, explicitly requires cold expansion, specifies minimum wall (not nominal), and names the inspection scope. The mill cannot misinterpret it, and the MTC will contain the data needed to verify compliance.

12. ZC Steel Pipe Supply Capability

ZC Steel Pipe supplies LSAW and seamless line pipe for large diameter projects:

All supply includes EN 10204 3.2 MTC, third-party inspection available throughout production. Contact ZC with your OD, wall, grade, PSL level, sour service requirement, coating specification, and quantity for availability and lead time.
