Quality Assurance & Quality Control

Our Quality Commitment

Quality Assurance (QA)

✓ Defined processes aligned to API 5CT, API 5L, and ISO 9001
✓ Supplier qualification and raw material approval
✓ Project-specific Quality Control Plans issued before production
✓ Regular internal and external audits
✓ Continuous improvement through corrective action review

Quality Control (QC)

✓ Incoming raw material inspection — chemistry and mechanical
✓ In-process dimensional and visual checks
✓ NDT: ultrasonic, radiographic, and magnetic particle testing
✓ Final dimensional inspection to API tolerances
✓ Full traceability — heat number to finished pipe

Mill Test Certificates

A Mill Test Certificate (MTC) is issued for every heat of pipe we supply. It records the heat number, chemical composition (C, Mn, P, S, Cr, Mo, Ni, V, Nb, Ti, CEpcm), and mechanical test results (yield strength, tensile strength, elongation, CVN impact values where applicable). MTCs are supplied with every shipment — no exceptions.

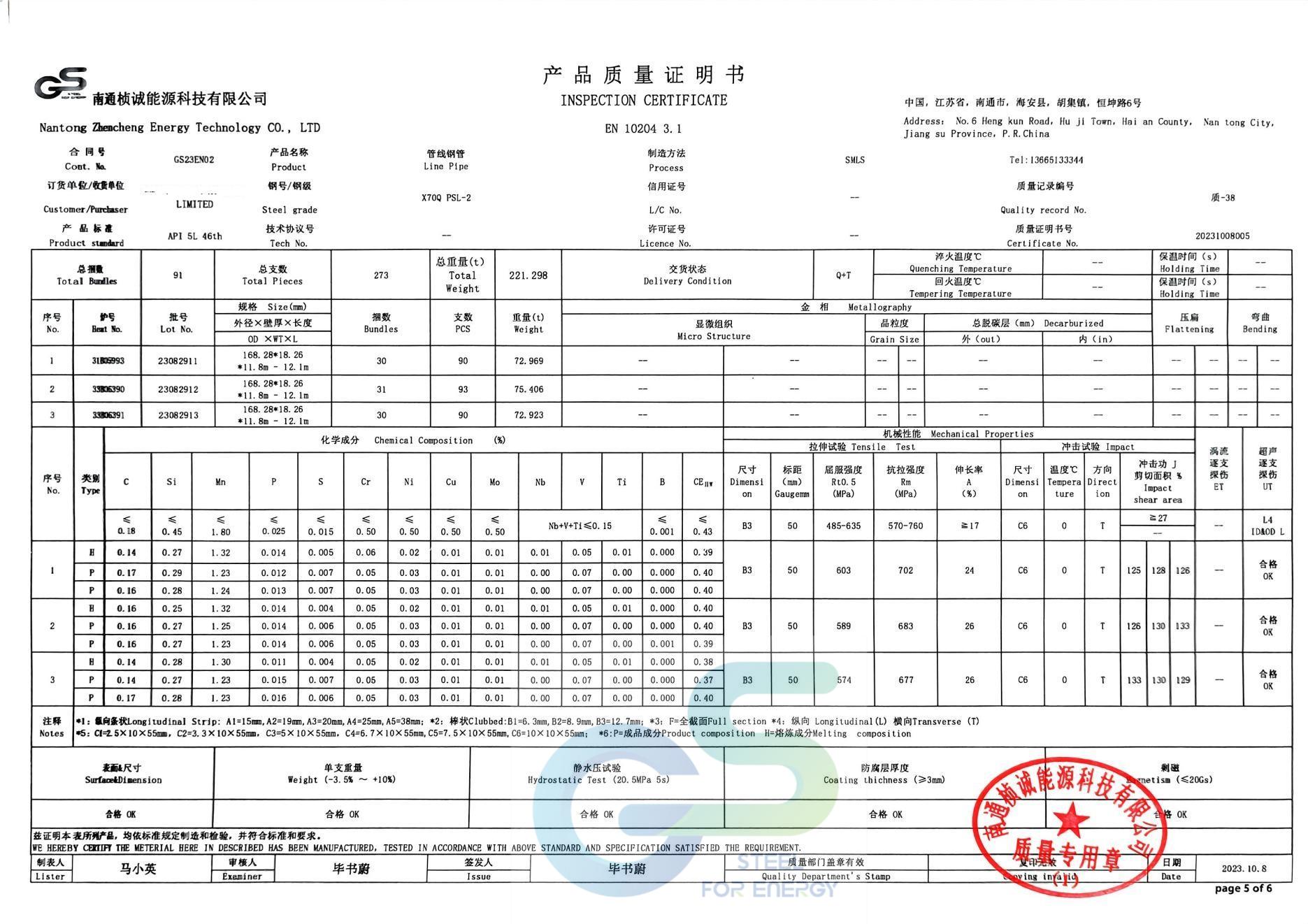

Mill Test Certificate — API 5L X70Q line pipe

API 5L X70Q Line Pipe MTC

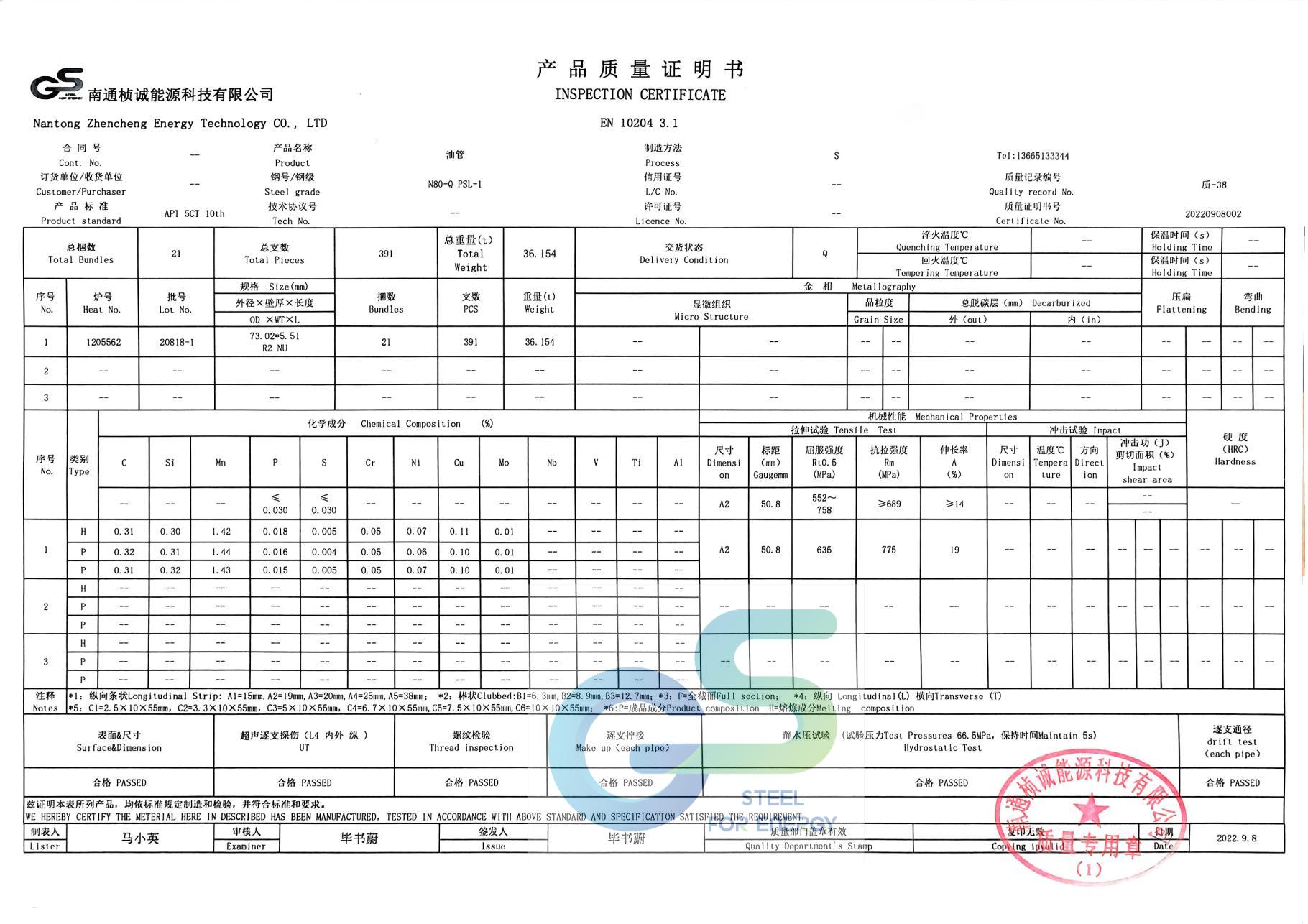

Mill Test Certificate — API 5CT N80Q tubing NU

API 5CT N80Q Tubing MTC

Click any certificate to enlarge.

Quality Control Plan

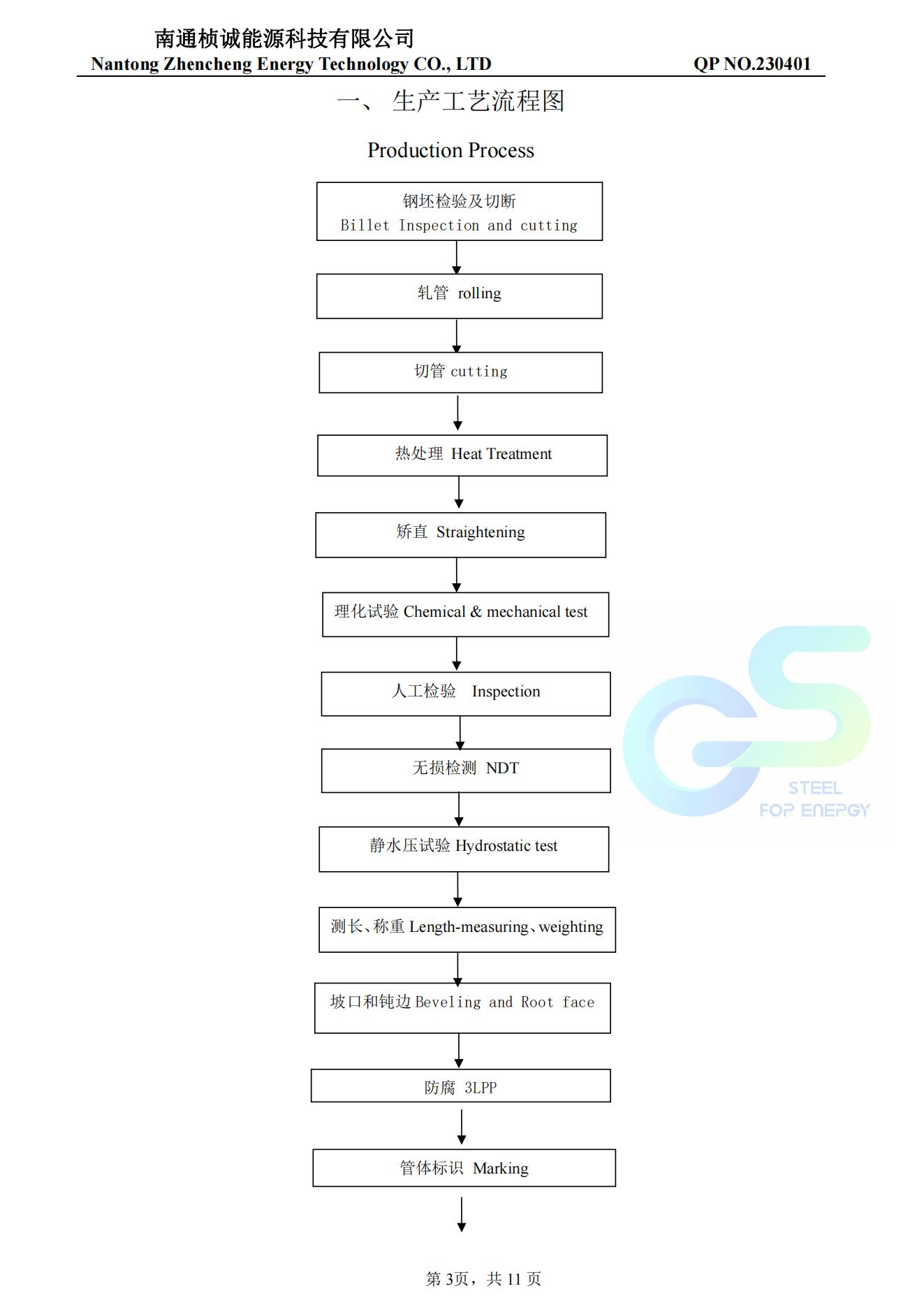

For every project order we prepare a project-specific Quality Control Plan (QCP). The QCP defines each inspection hold point, the responsible party, the acceptance criteria, and the documentation required. The example below is an 11-page QCP for an API 5L SMLS X65QS PSL-2 order (273.1 × 15.8 mm, 3LPP coating).

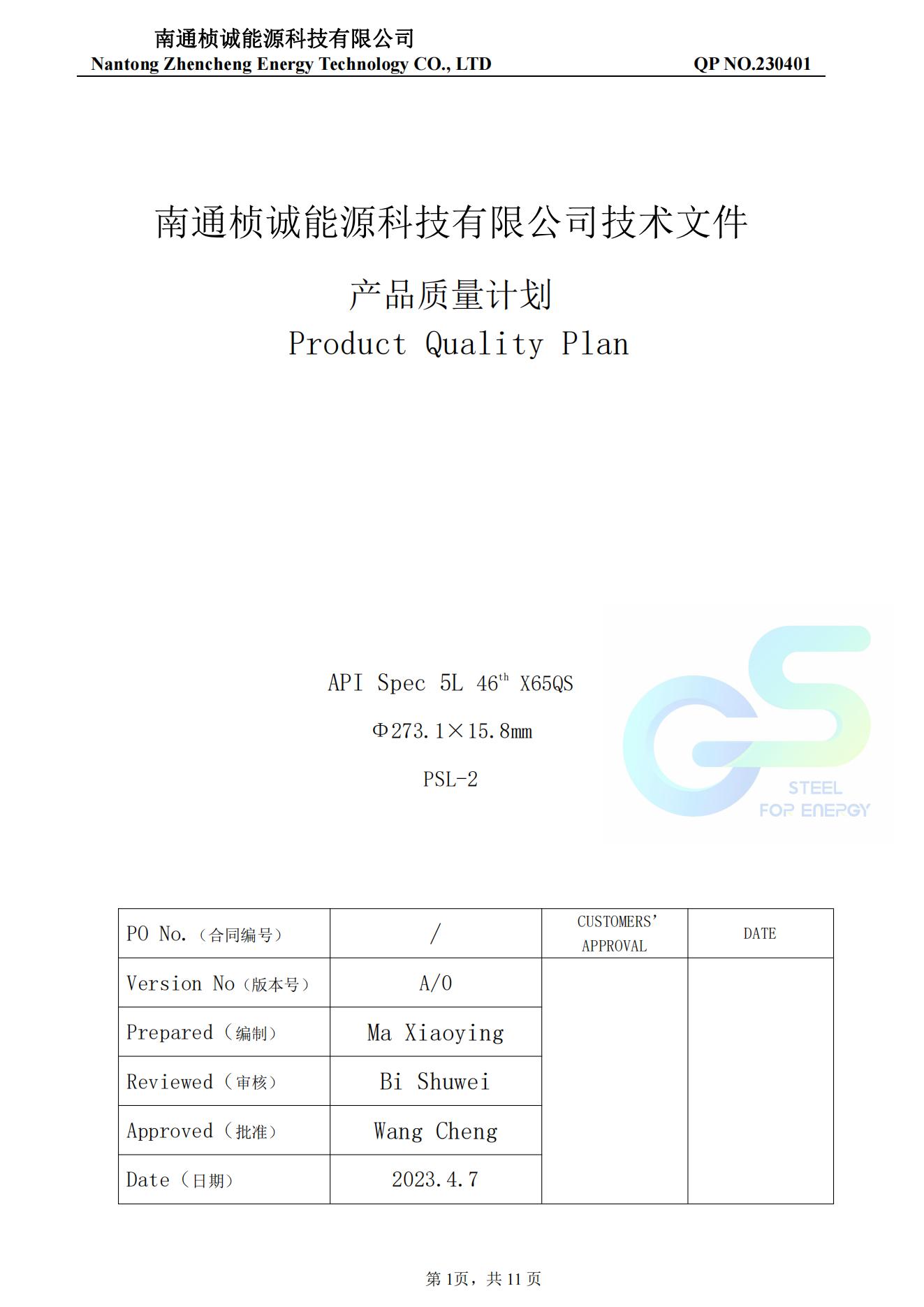

Page 1

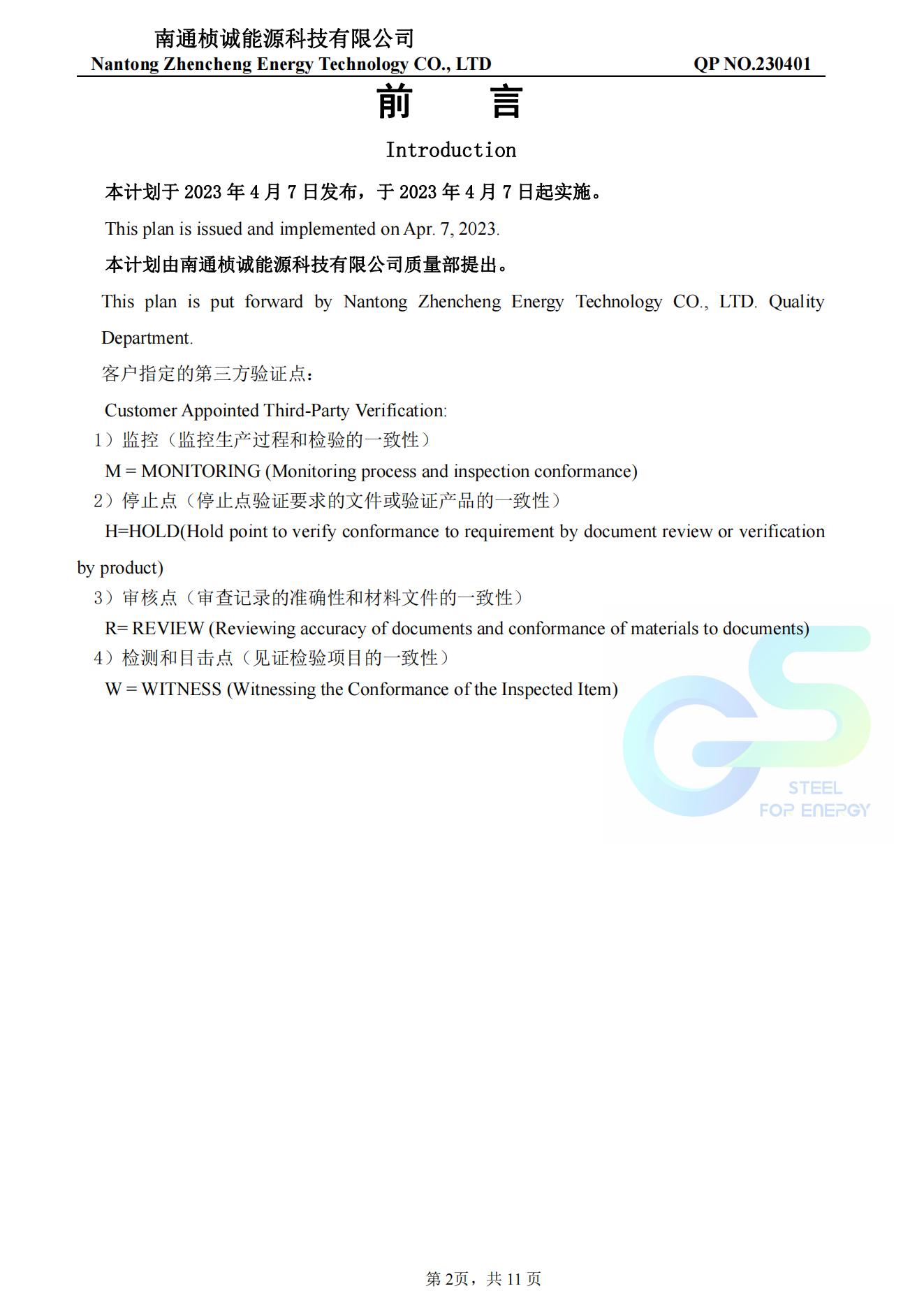

Page 2

Page 3

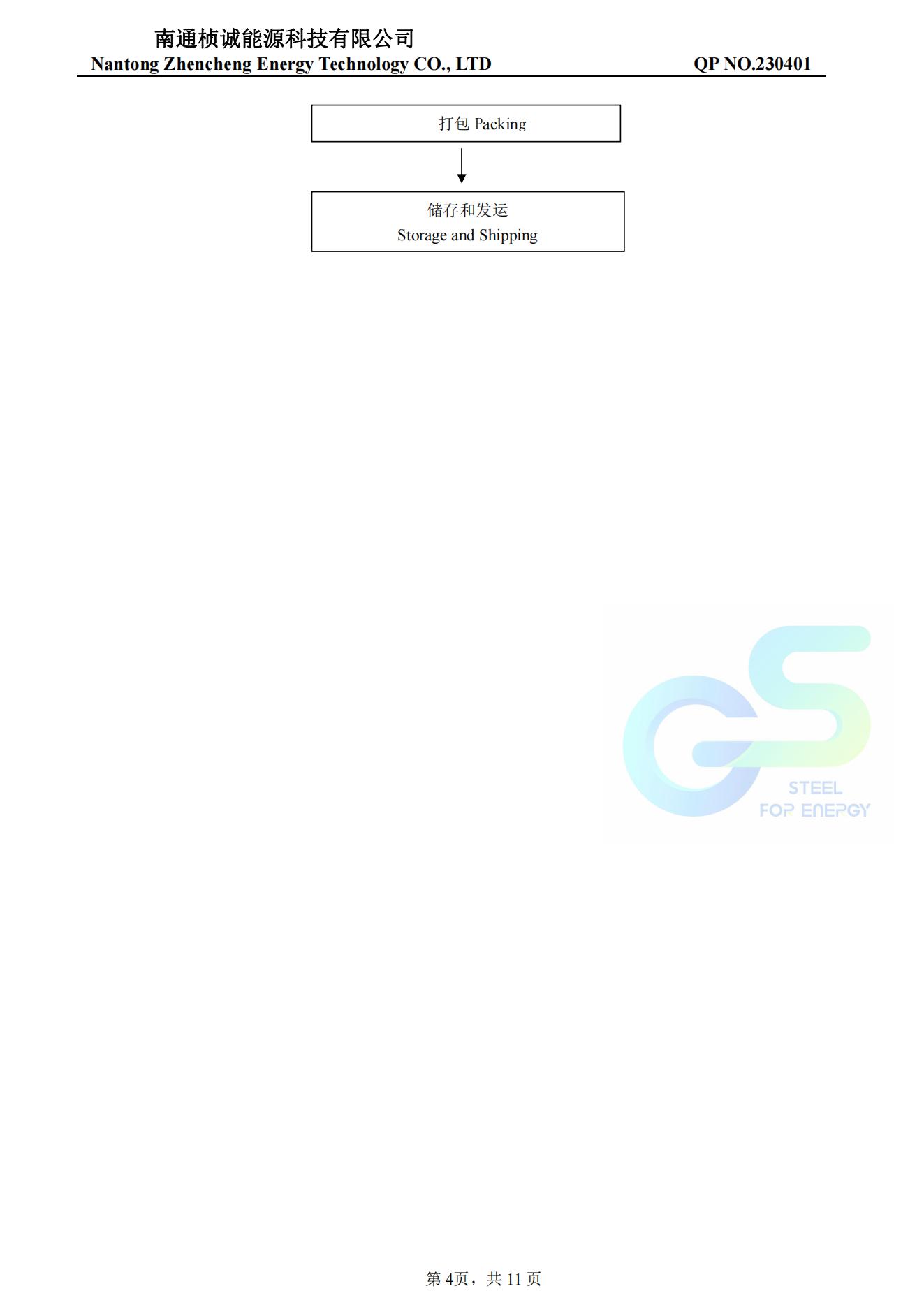

Page 4

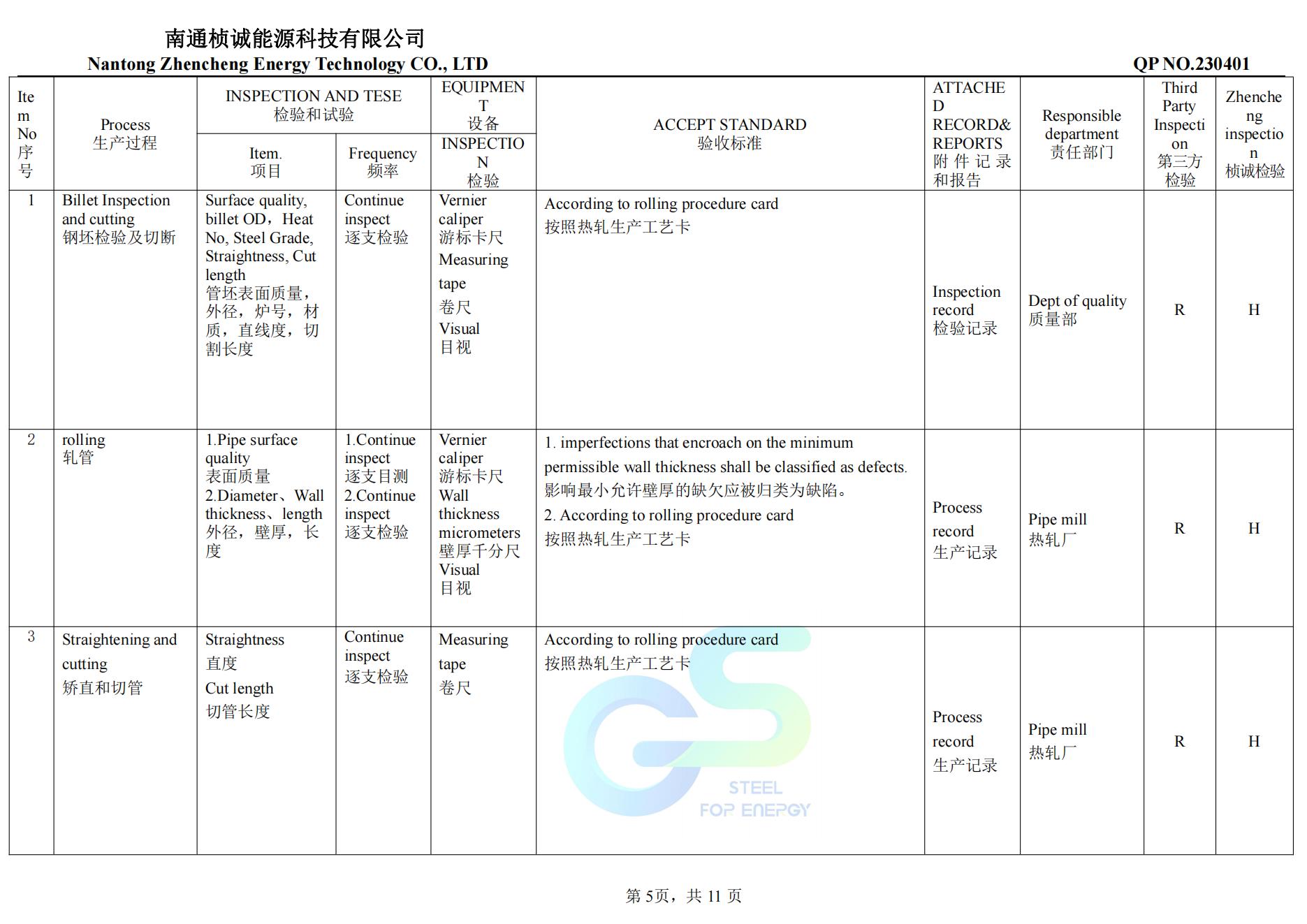

Page 5

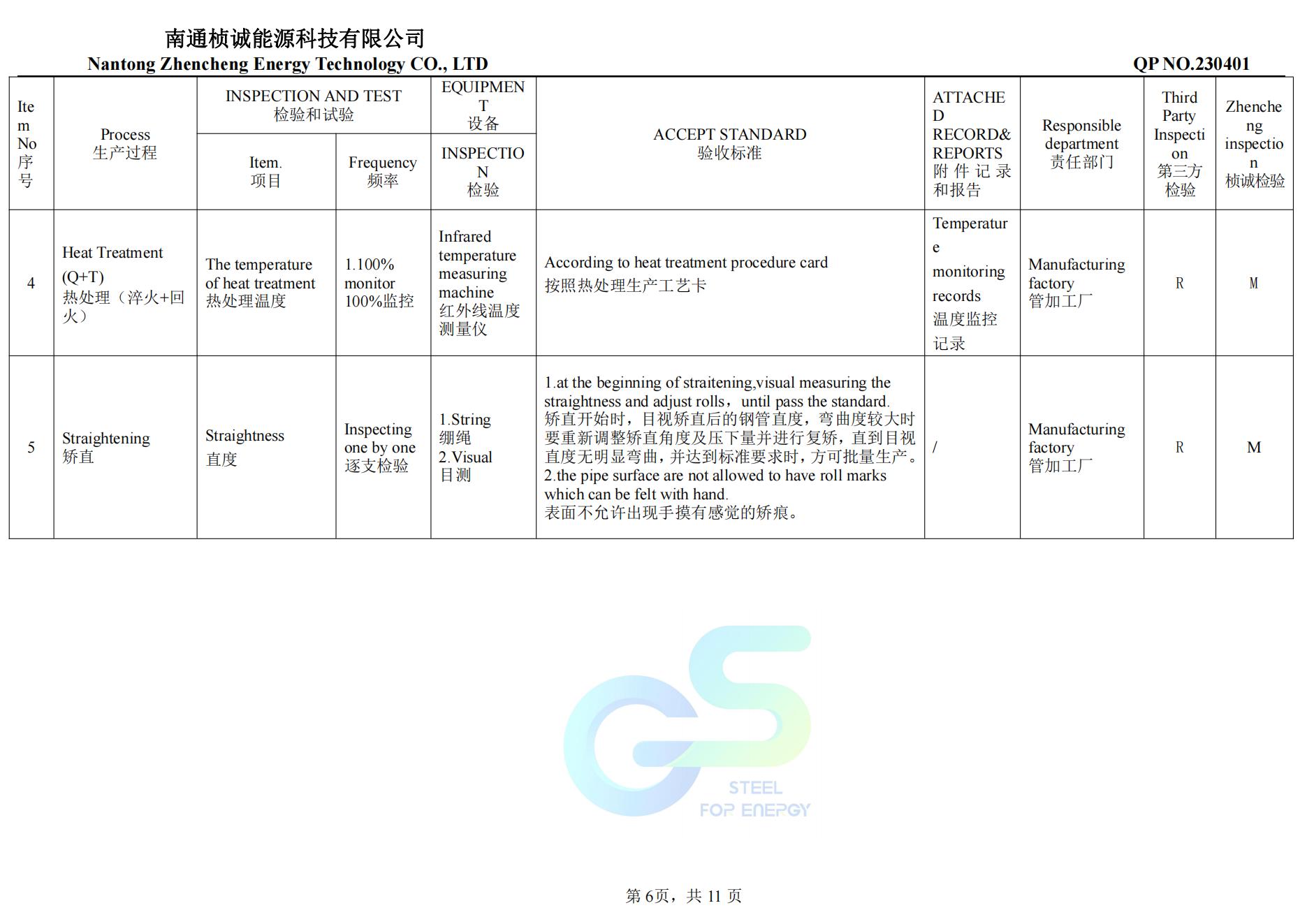

Page 6

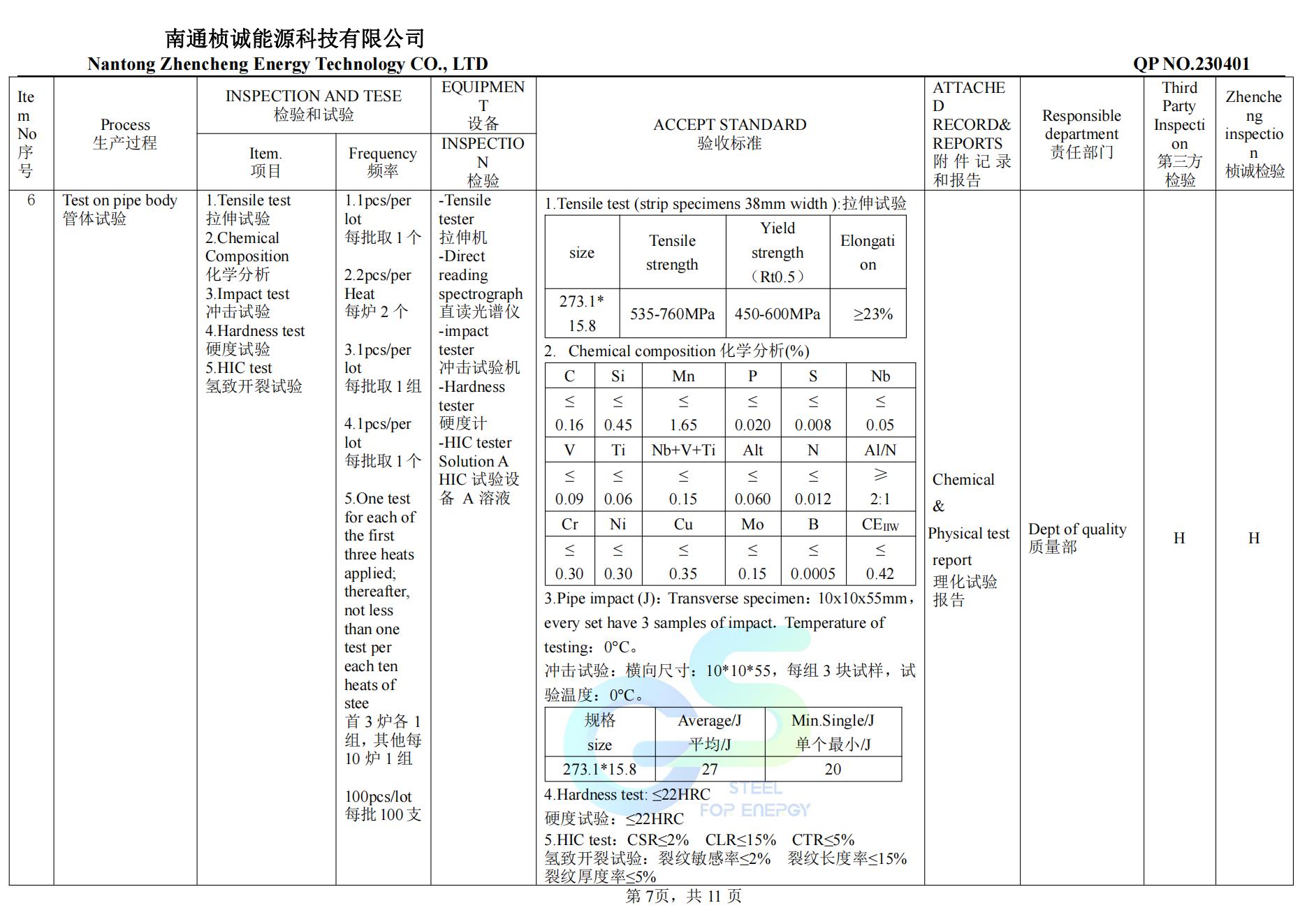

Page 7

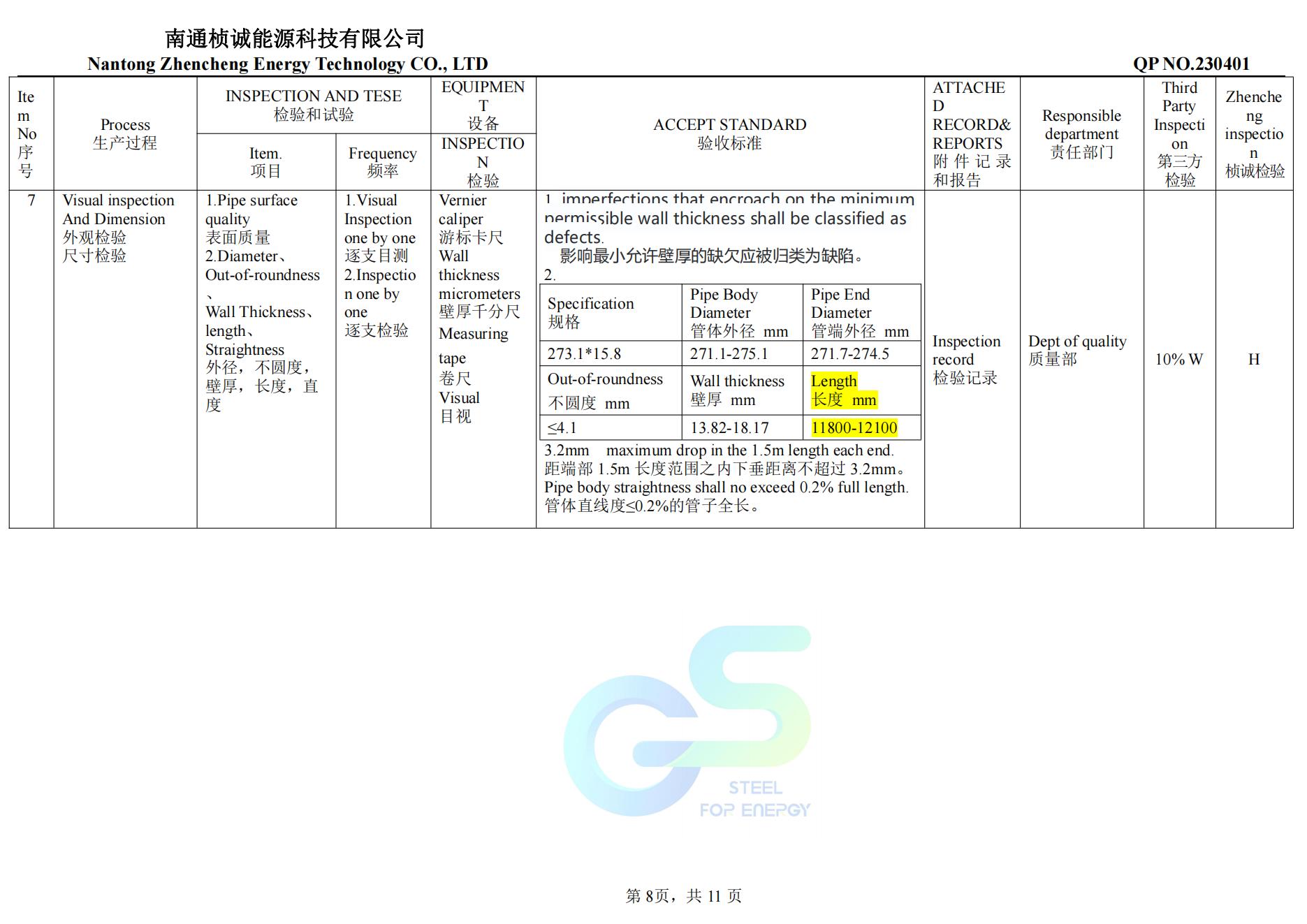

Page 8

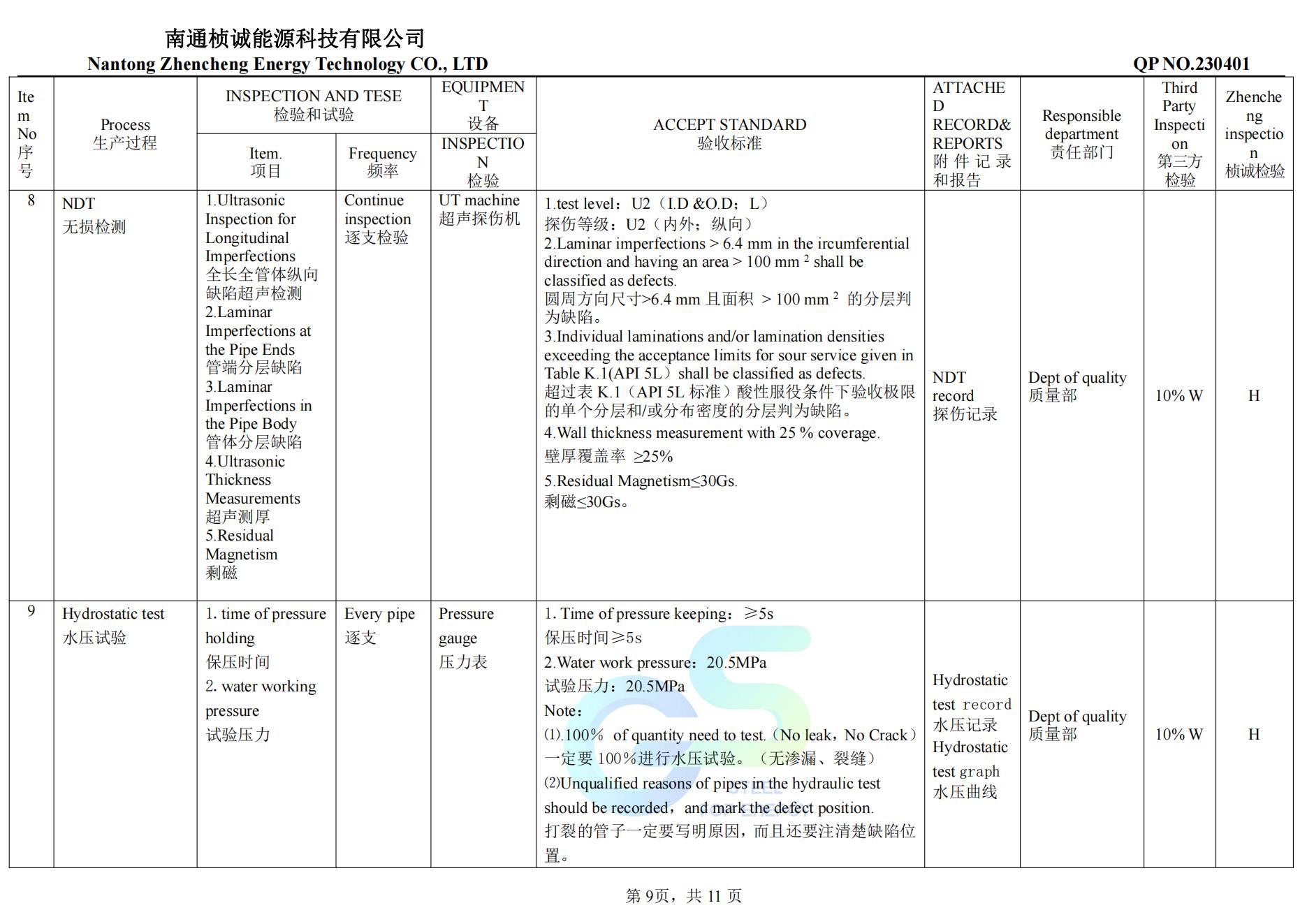

Page 9

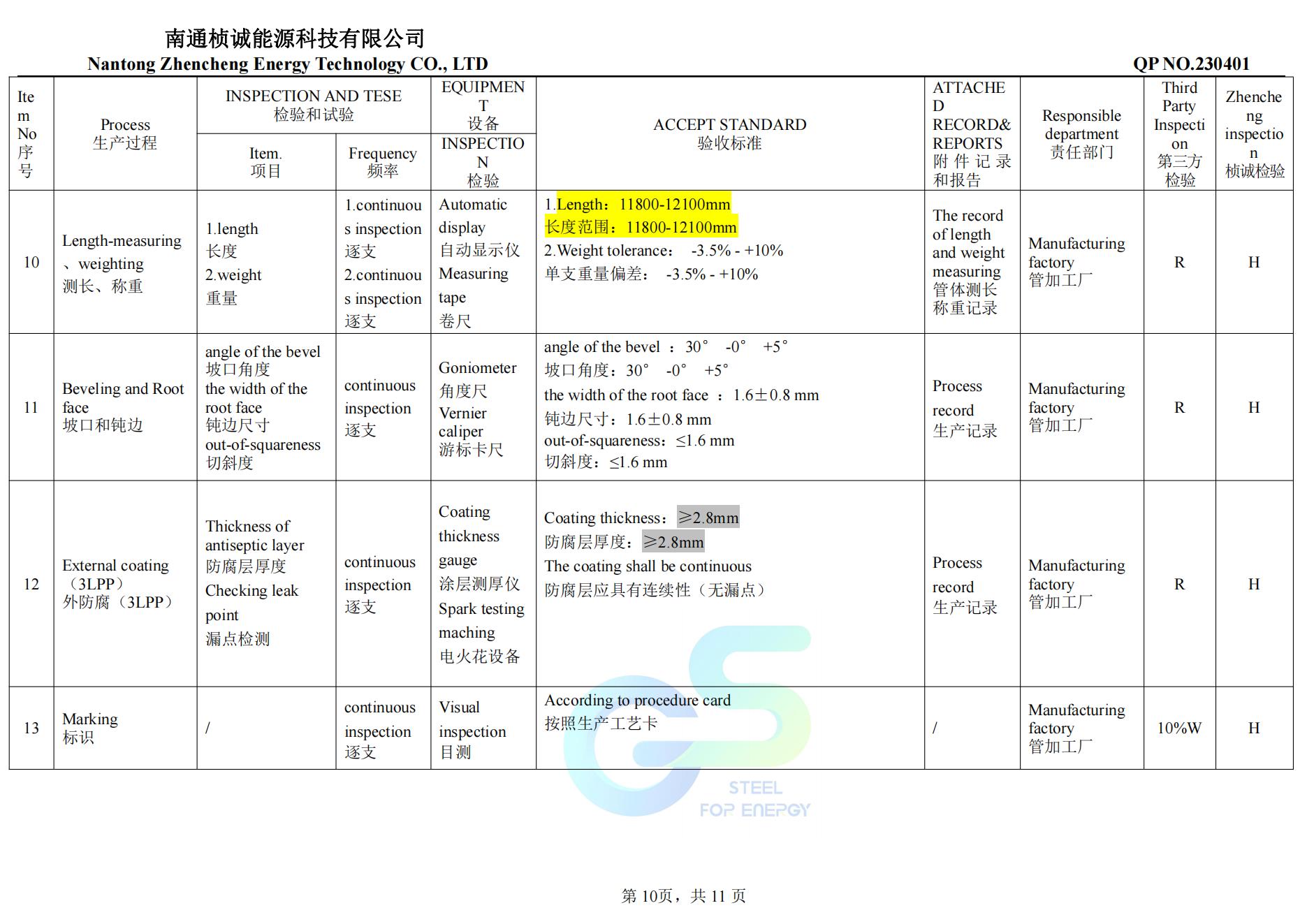

Page 10

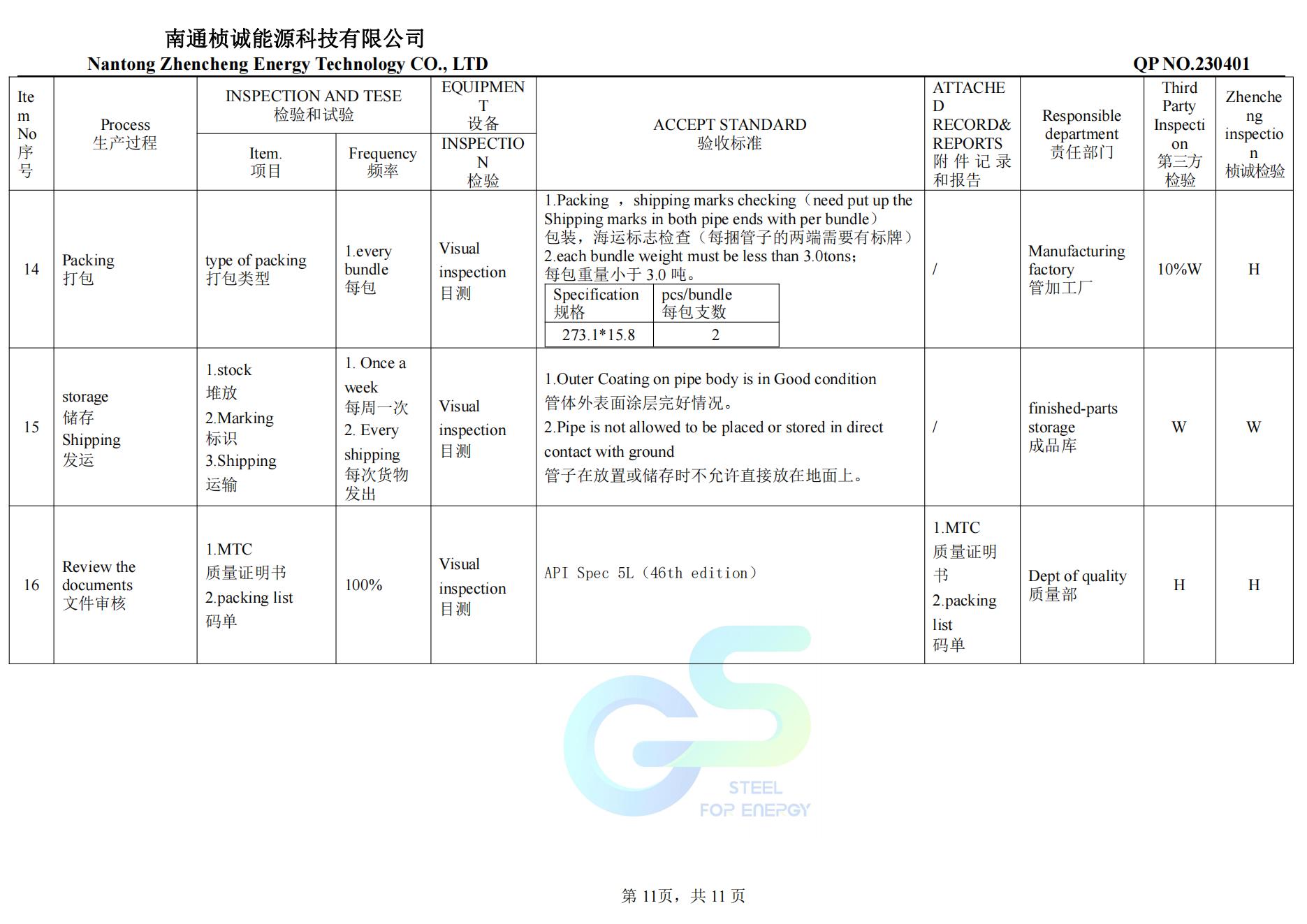

Page 11

Click any page to enlarge. Scroll through all 11 pages.

Third-Party Inspection

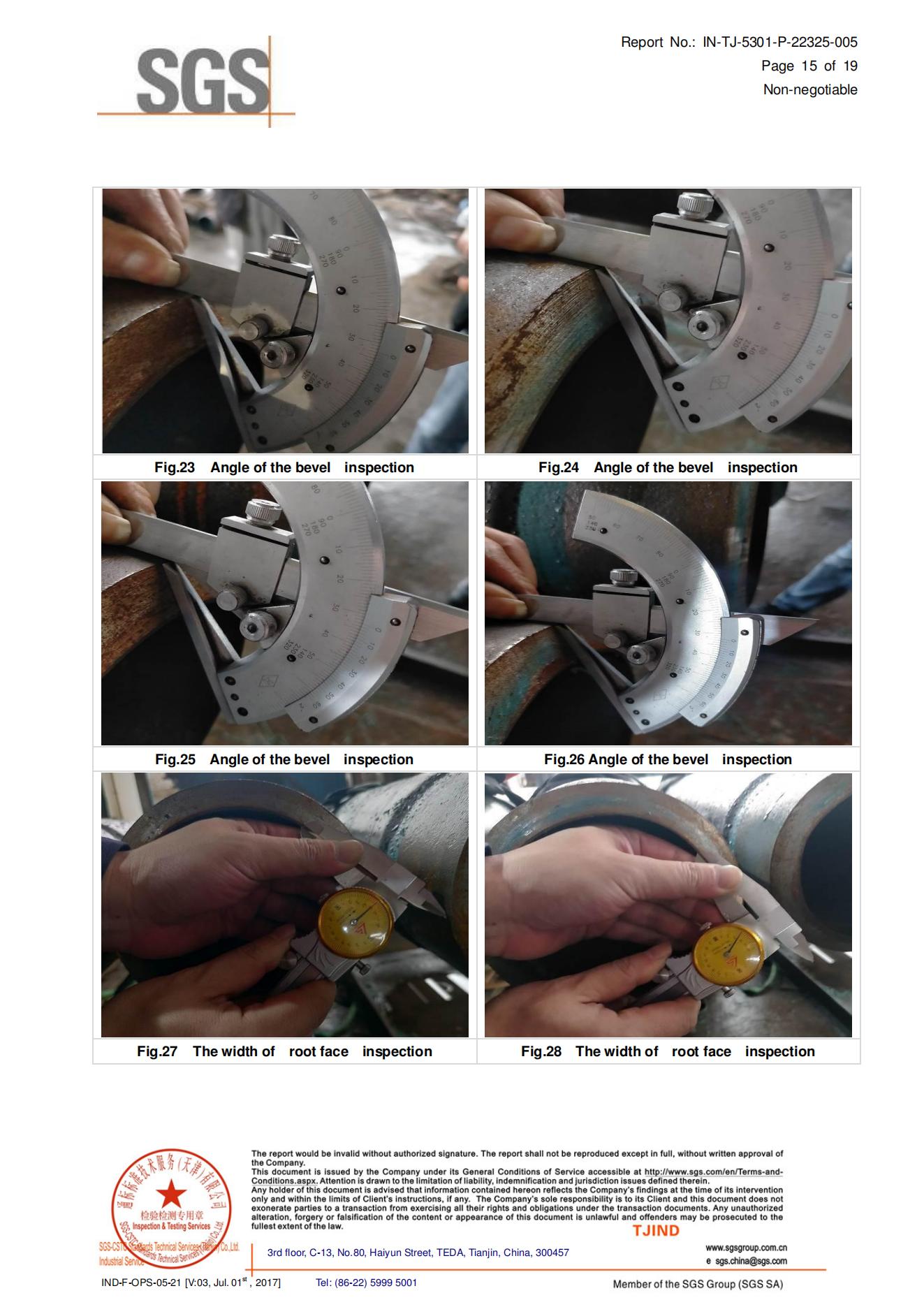

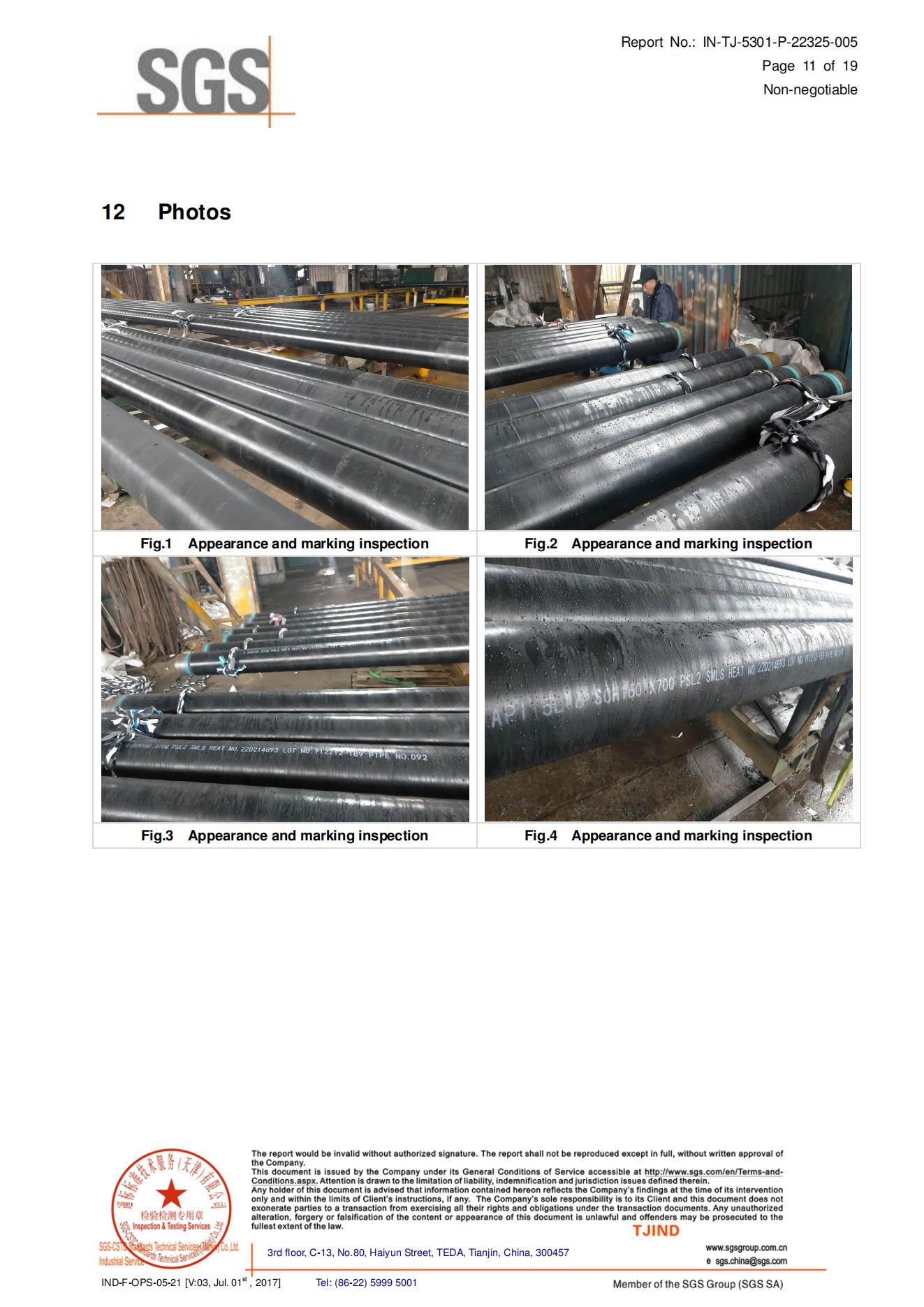

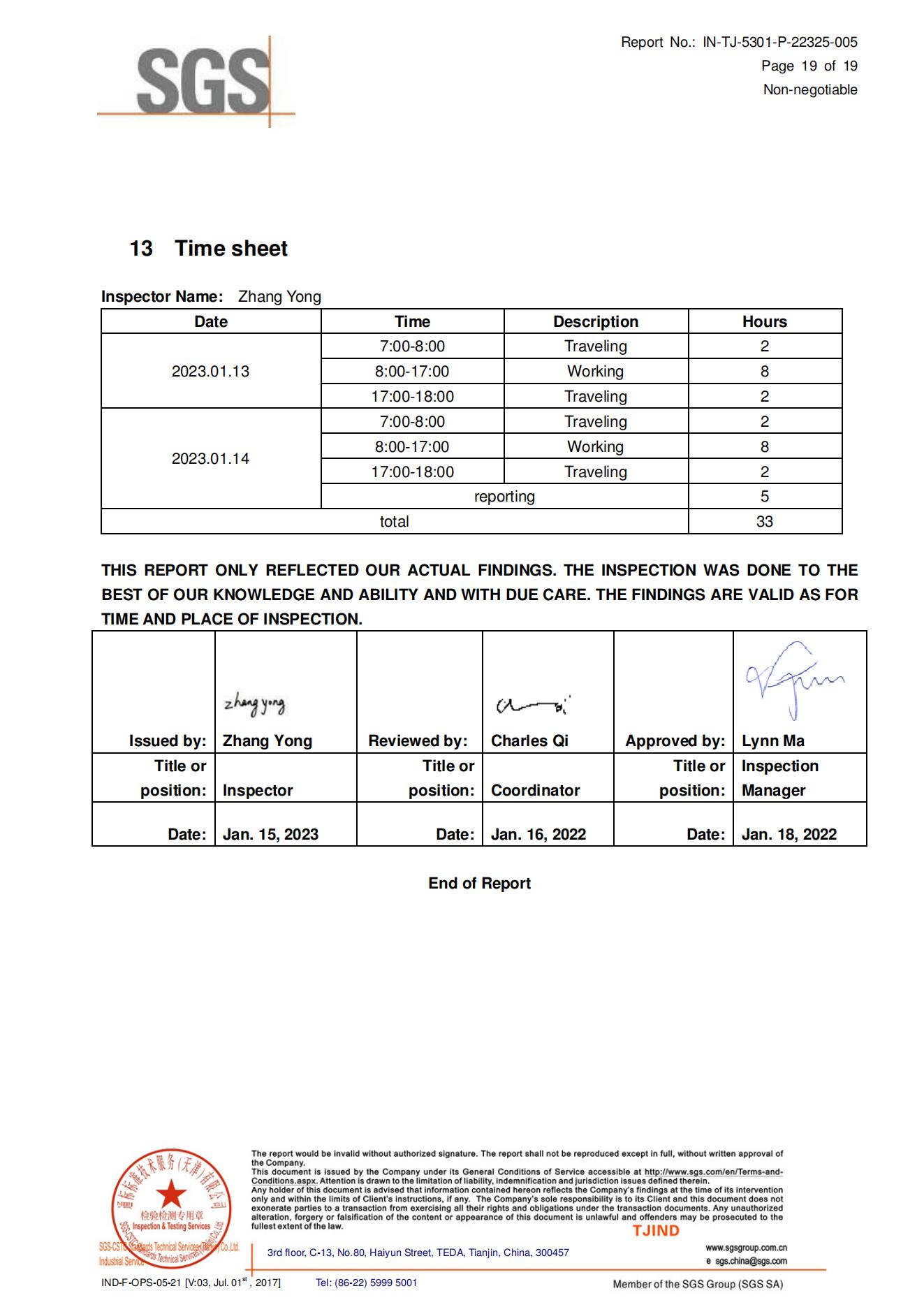

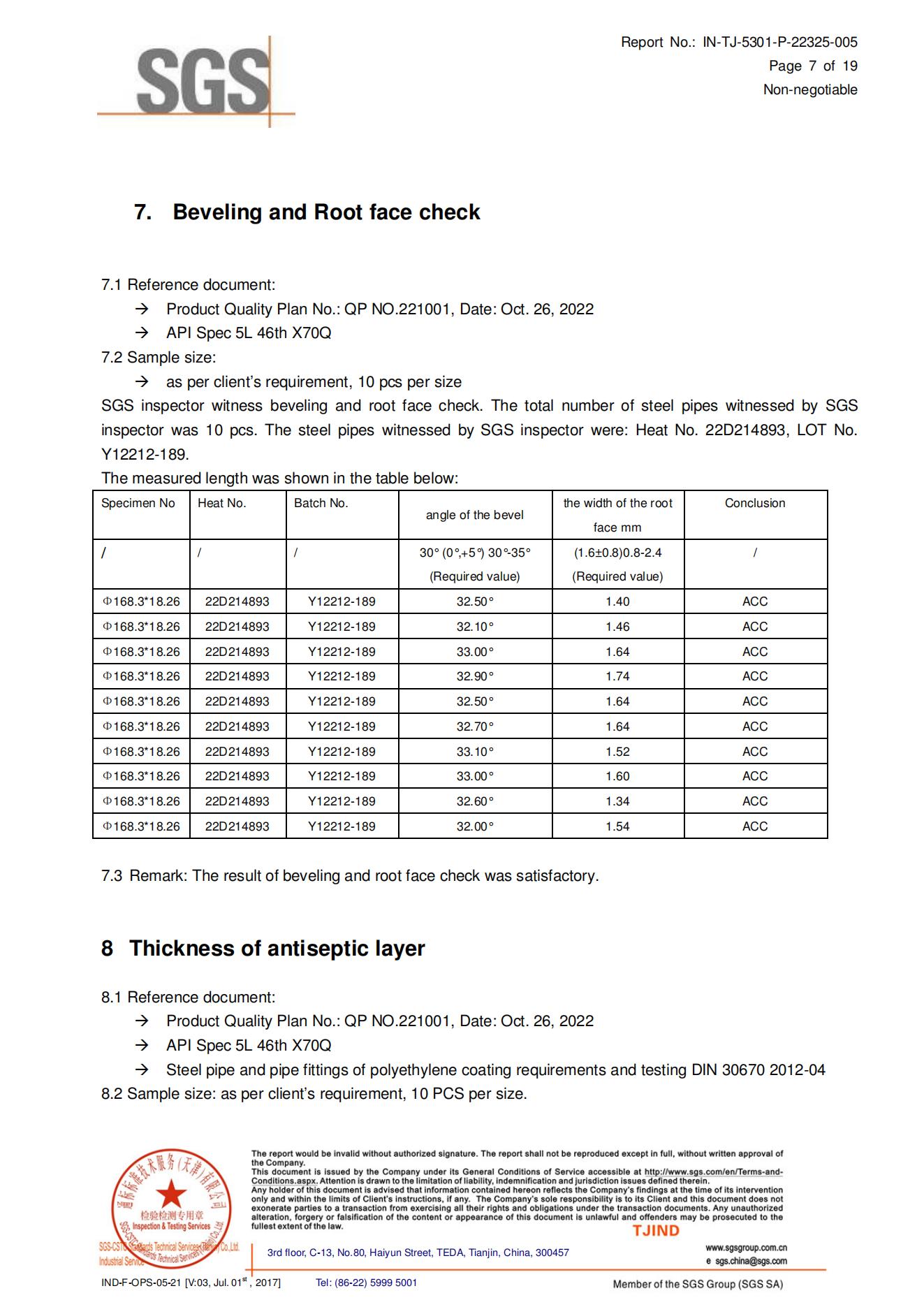

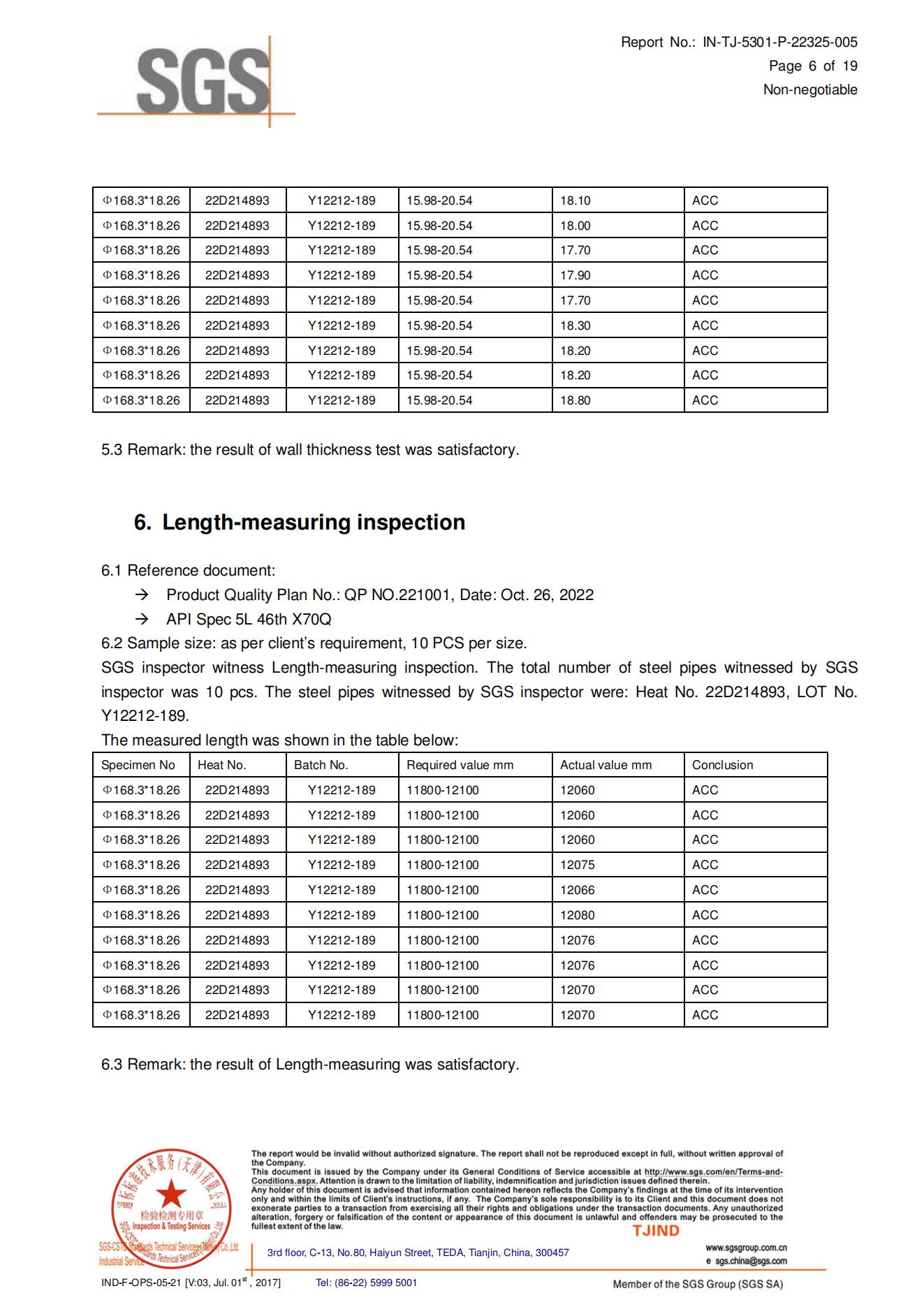

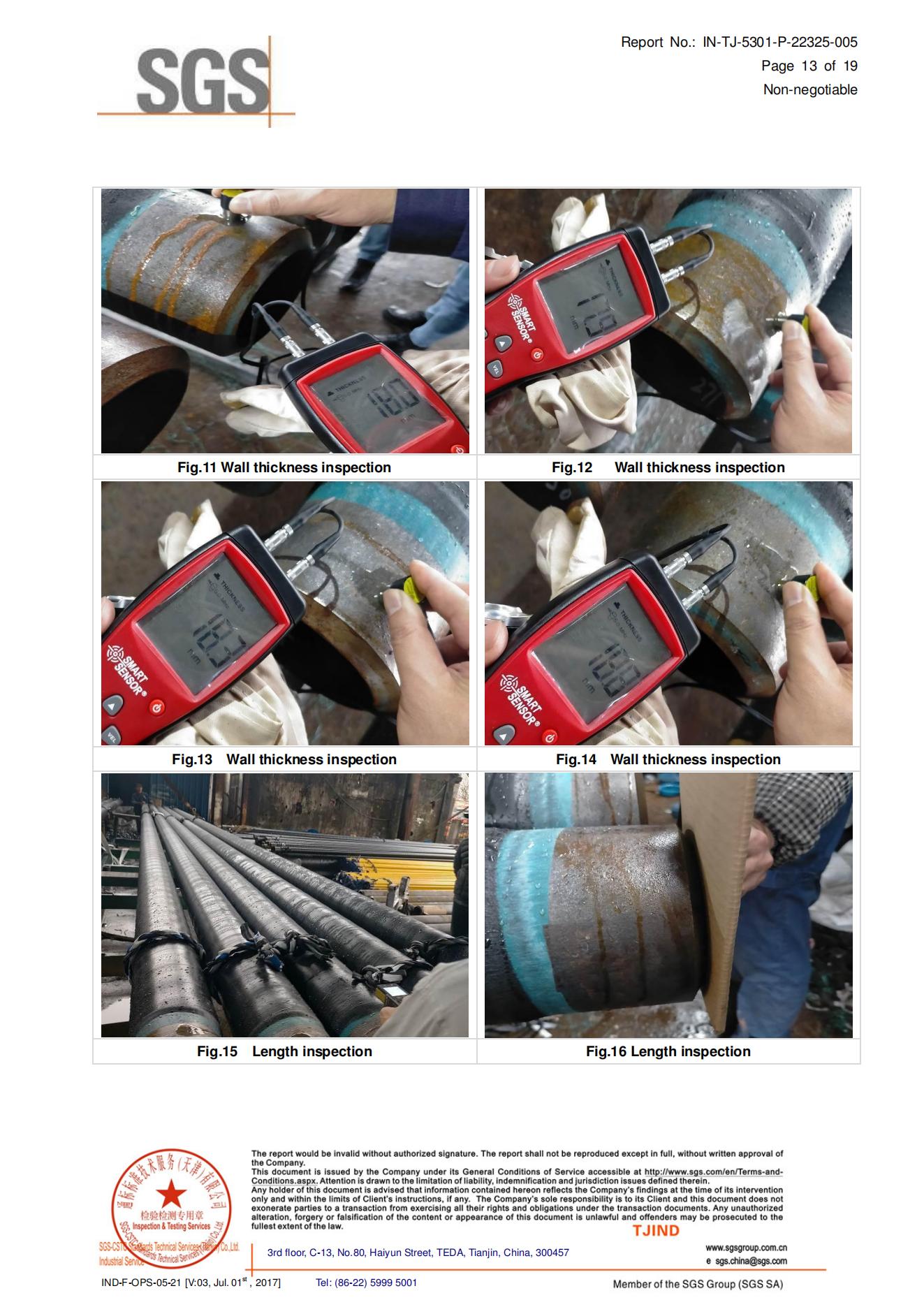

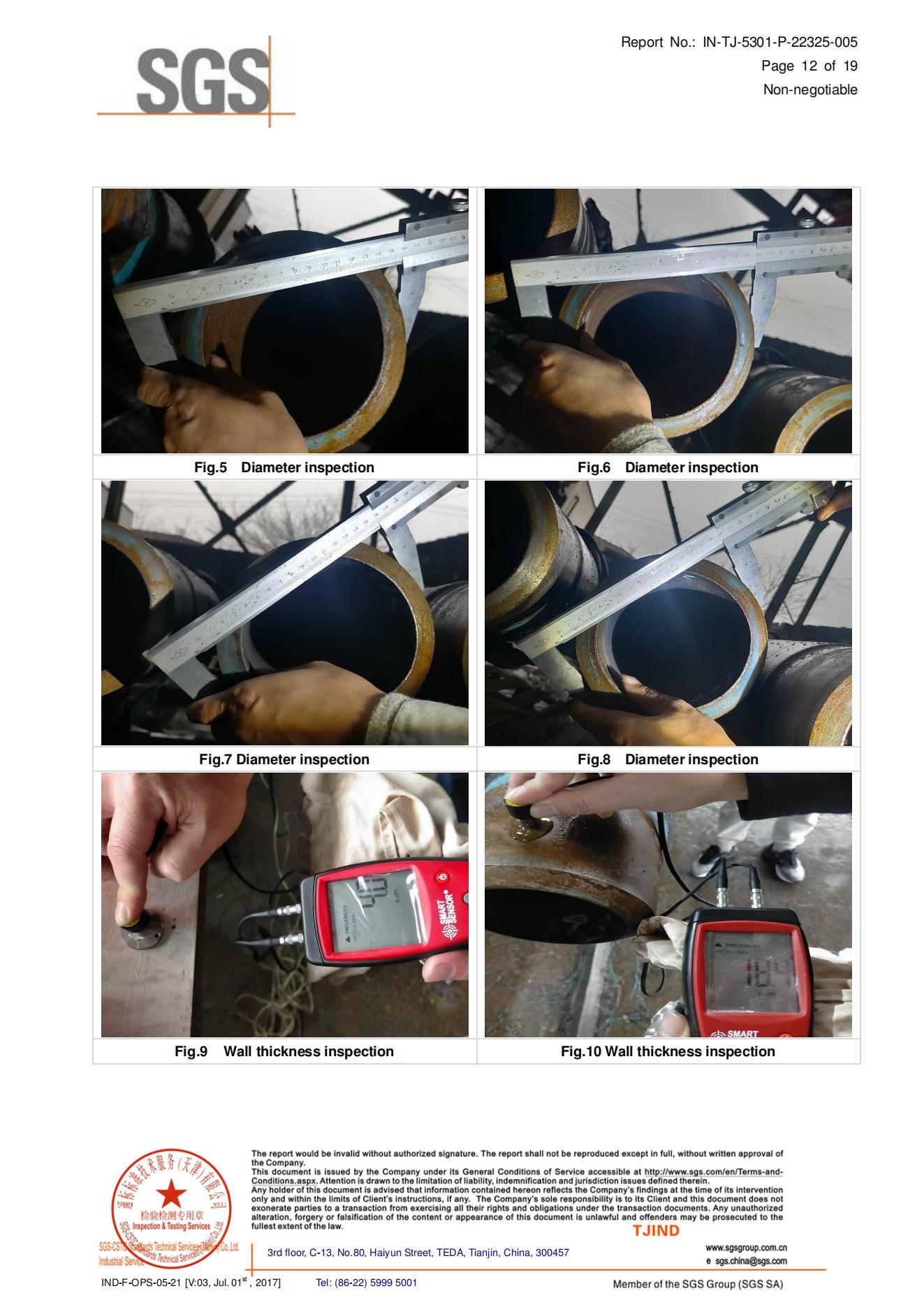

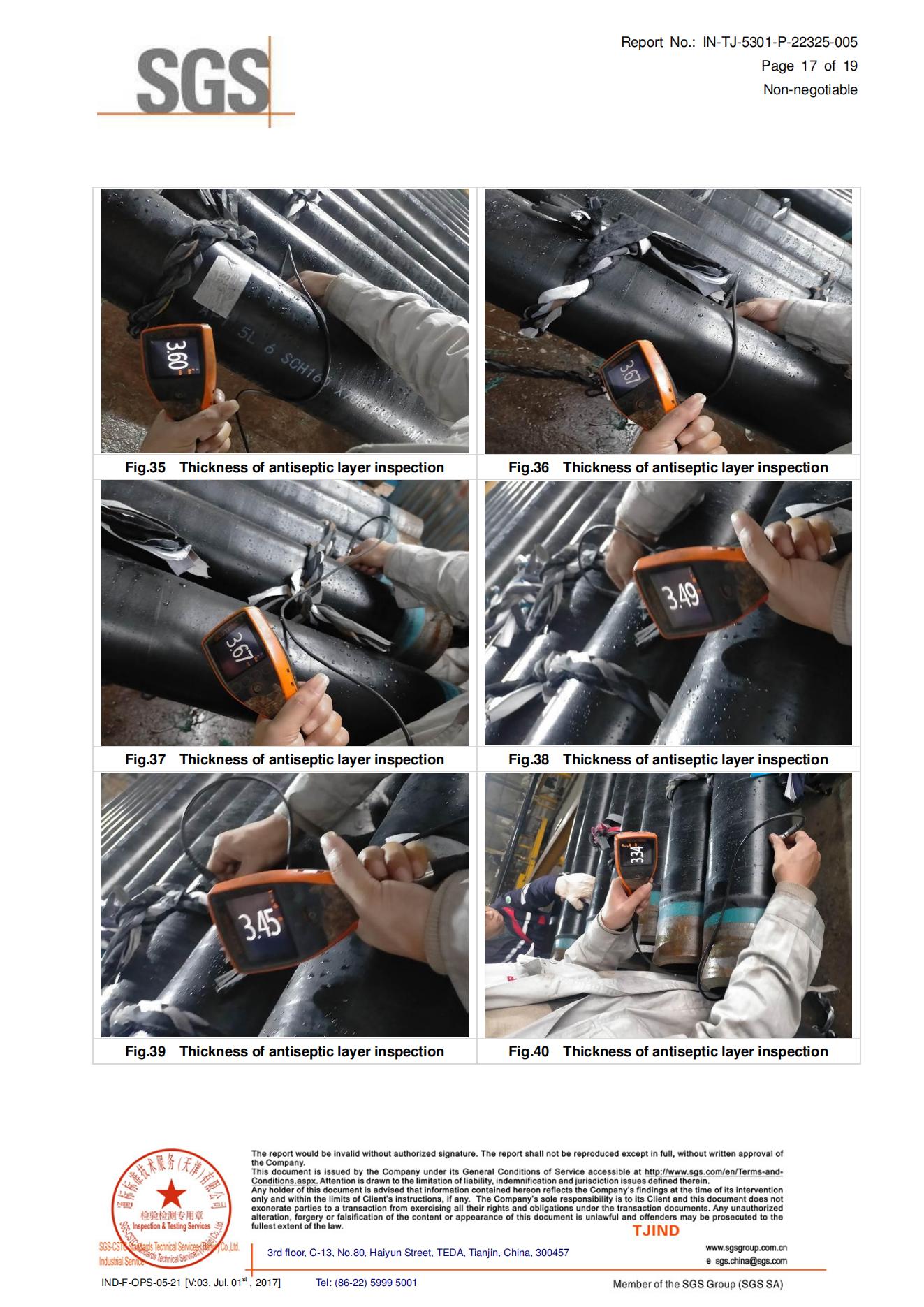

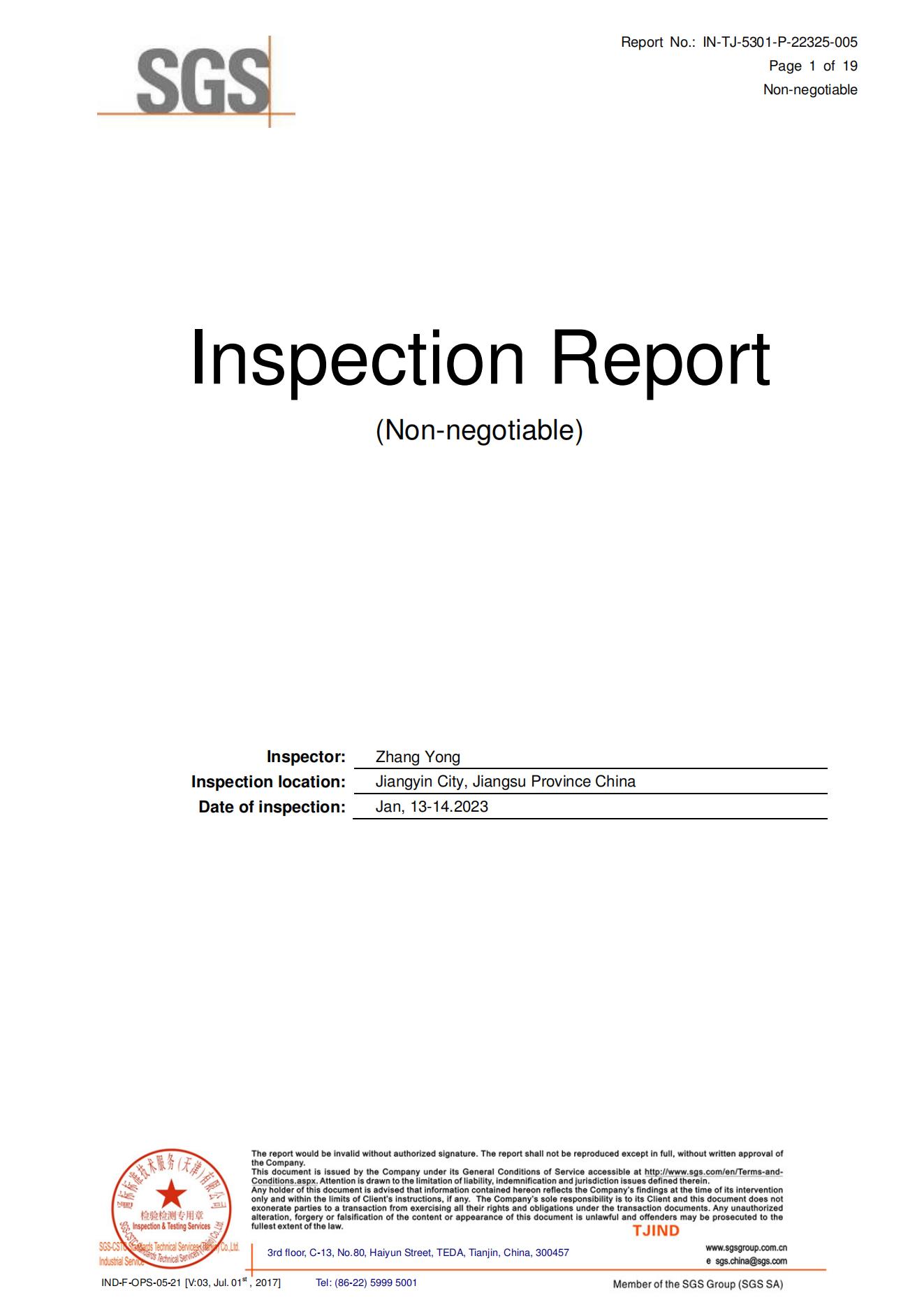

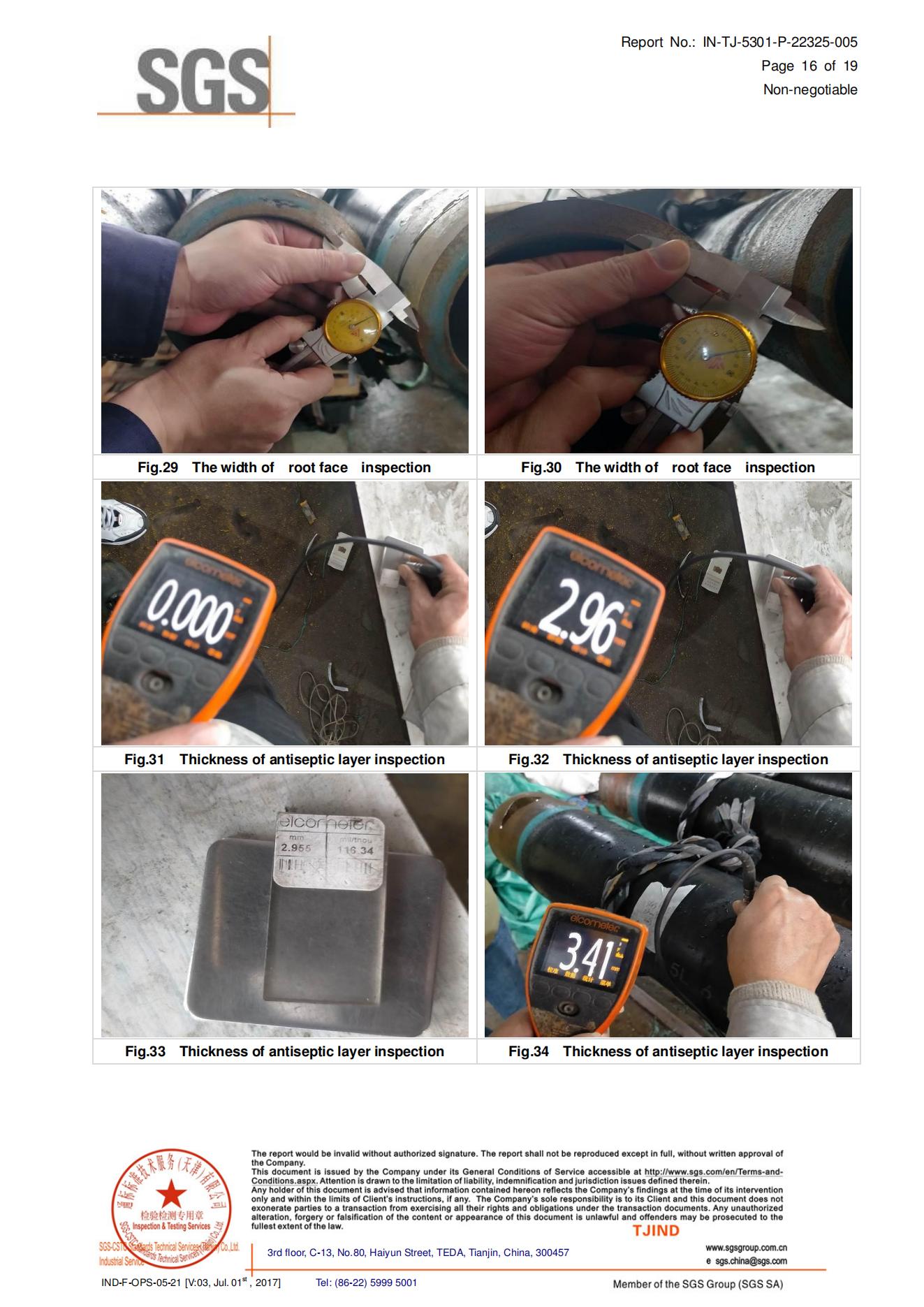

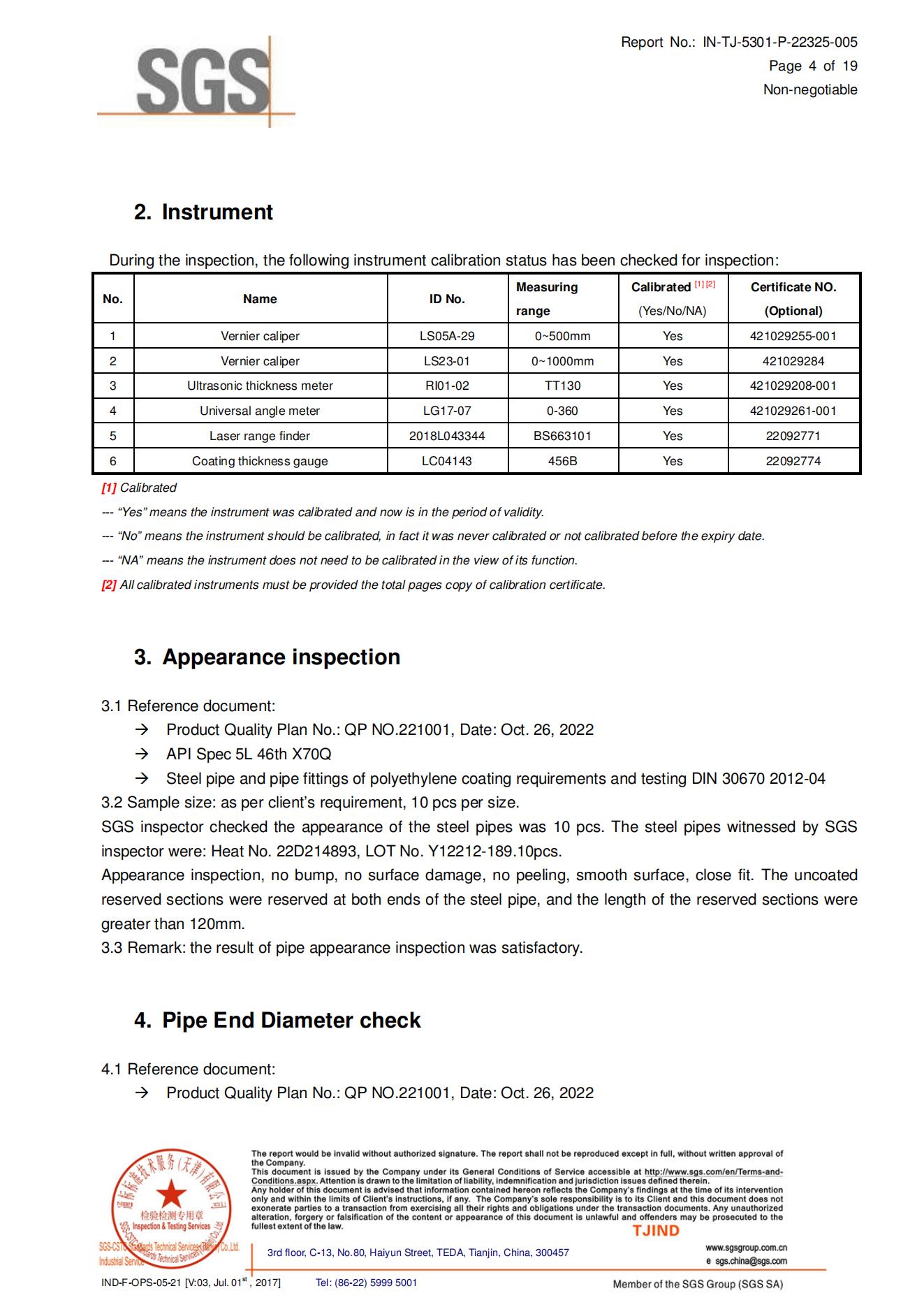

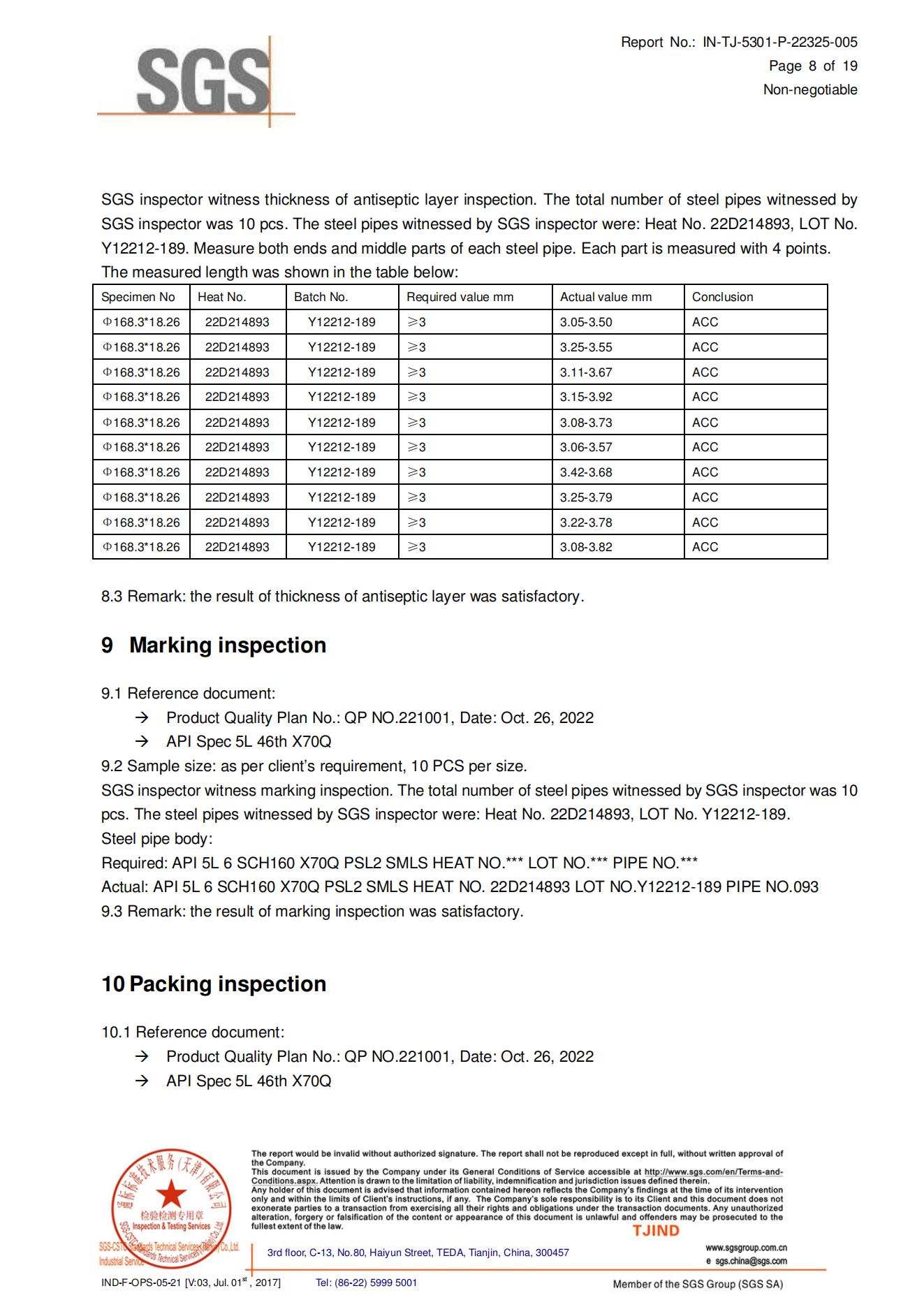

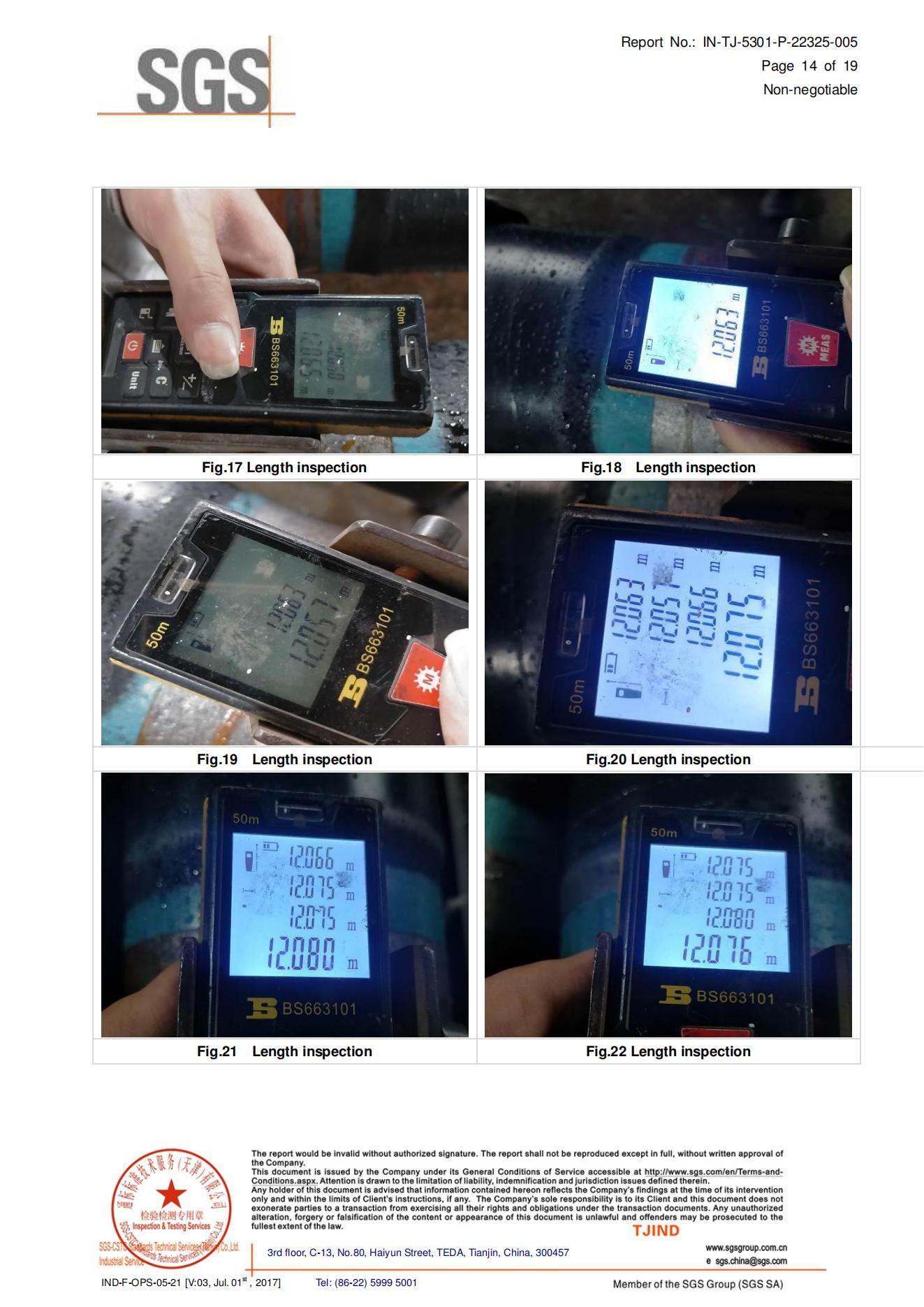

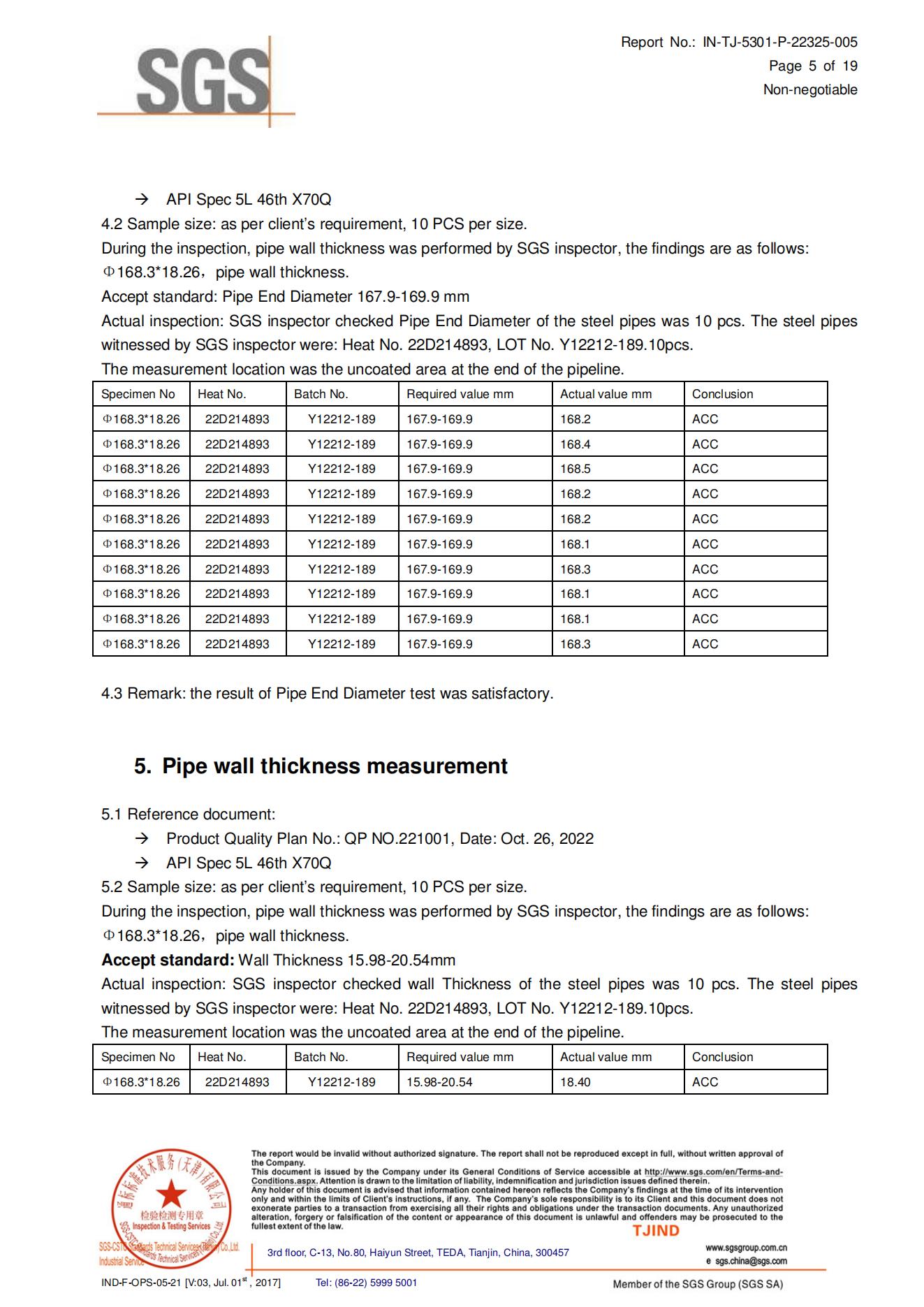

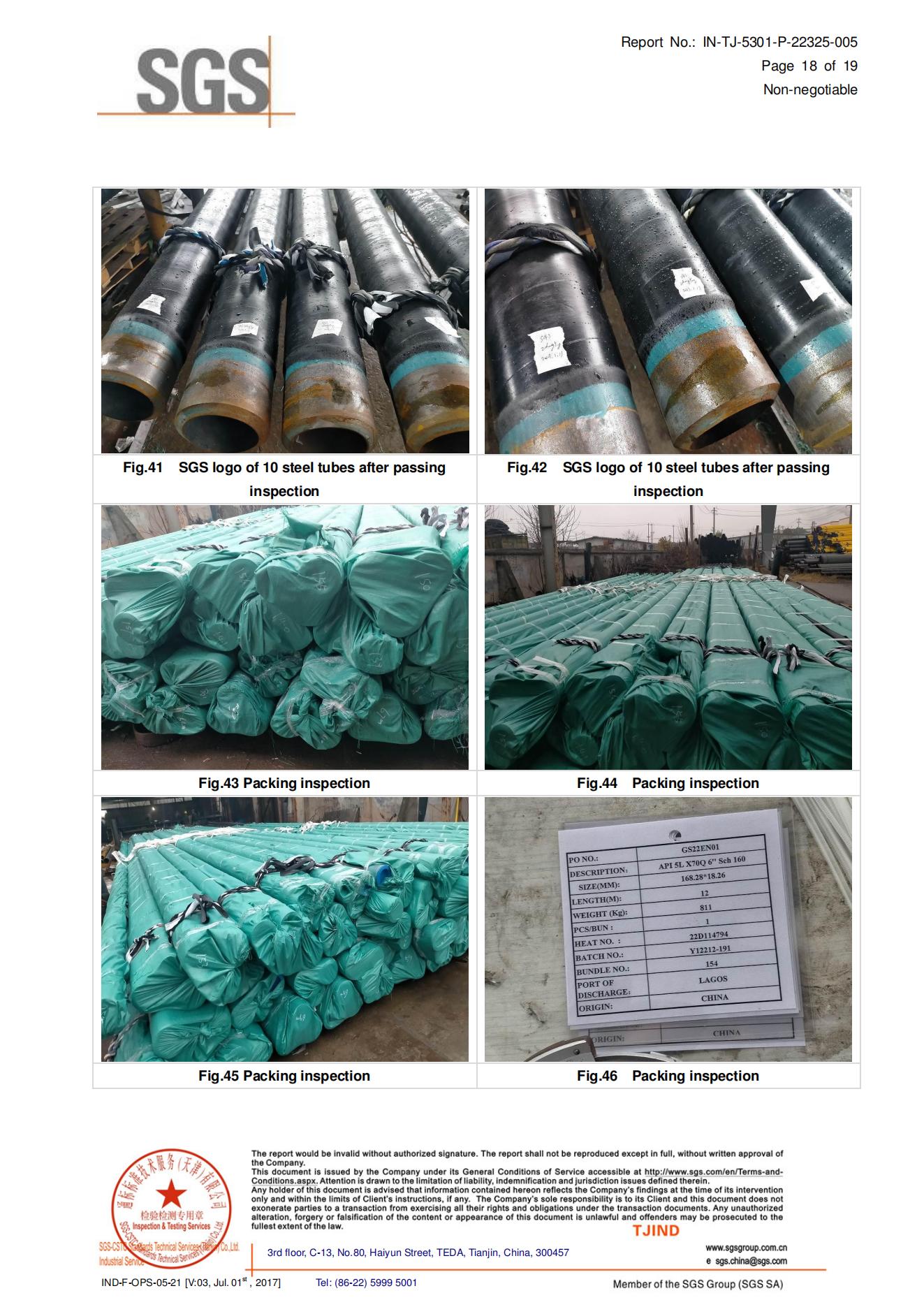

Independent third-party inspection (TPI) is available on all orders — coordinated with SGS, Bureau Veritas, Intertek, or a client-nominated inspector. The final inspection report below covers dimensional, visual, NDT, and hydrostatic testing for an actual customer shipment.
