Standard
ASME B16.9, ASME B16.28
Size Range
½" – 24" seamless; 4" – 72" welded
Category
Fittings

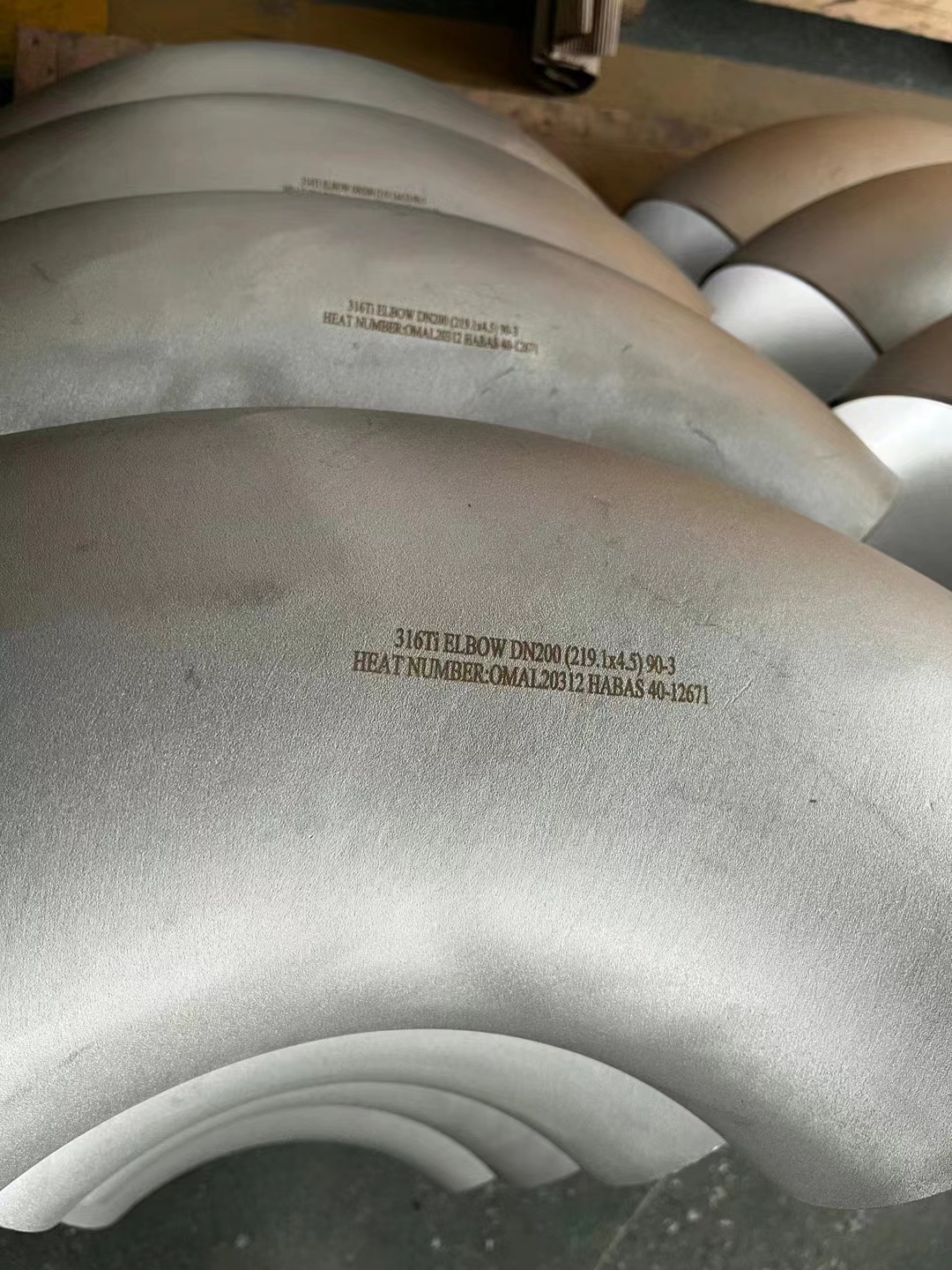

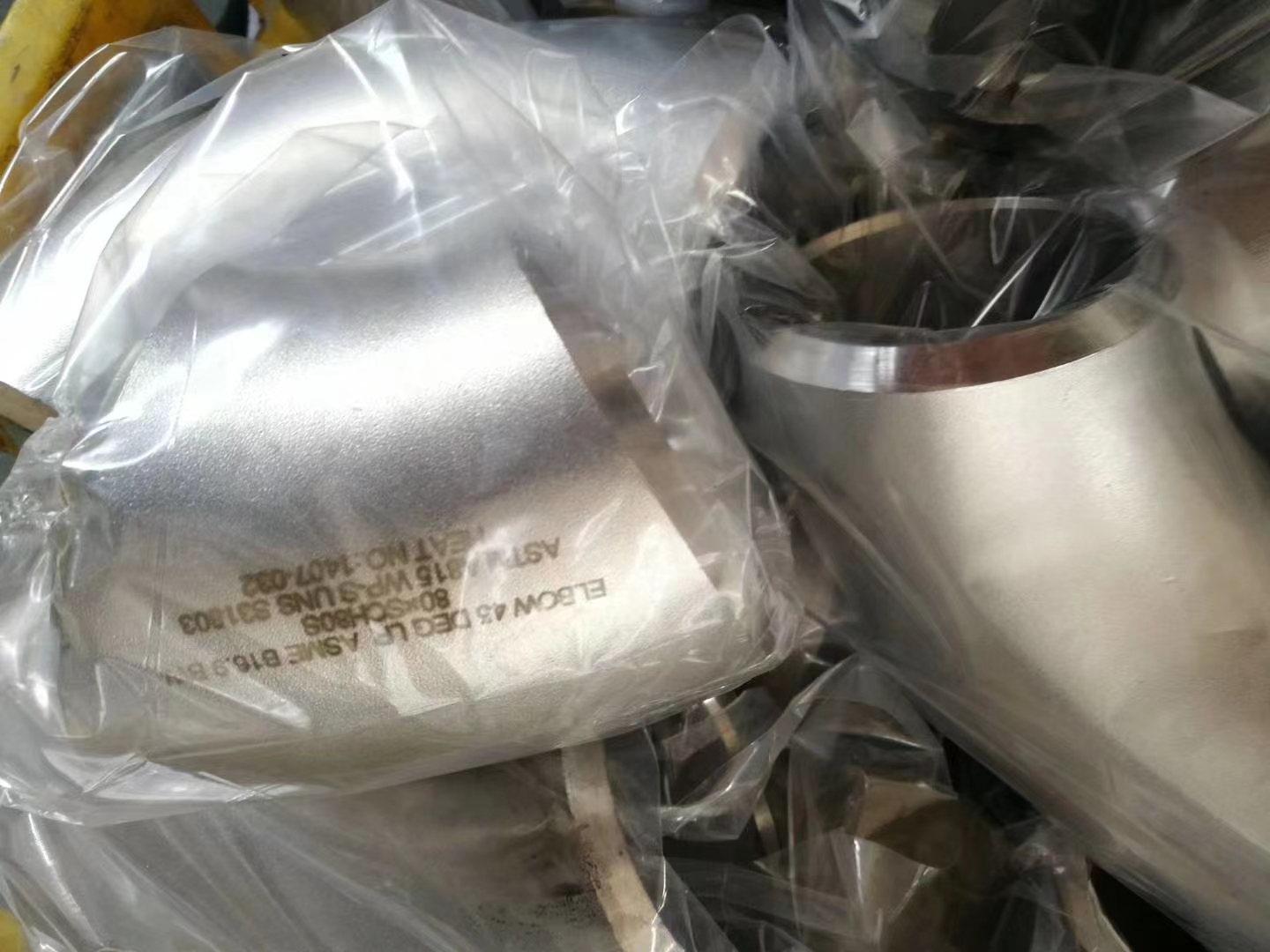

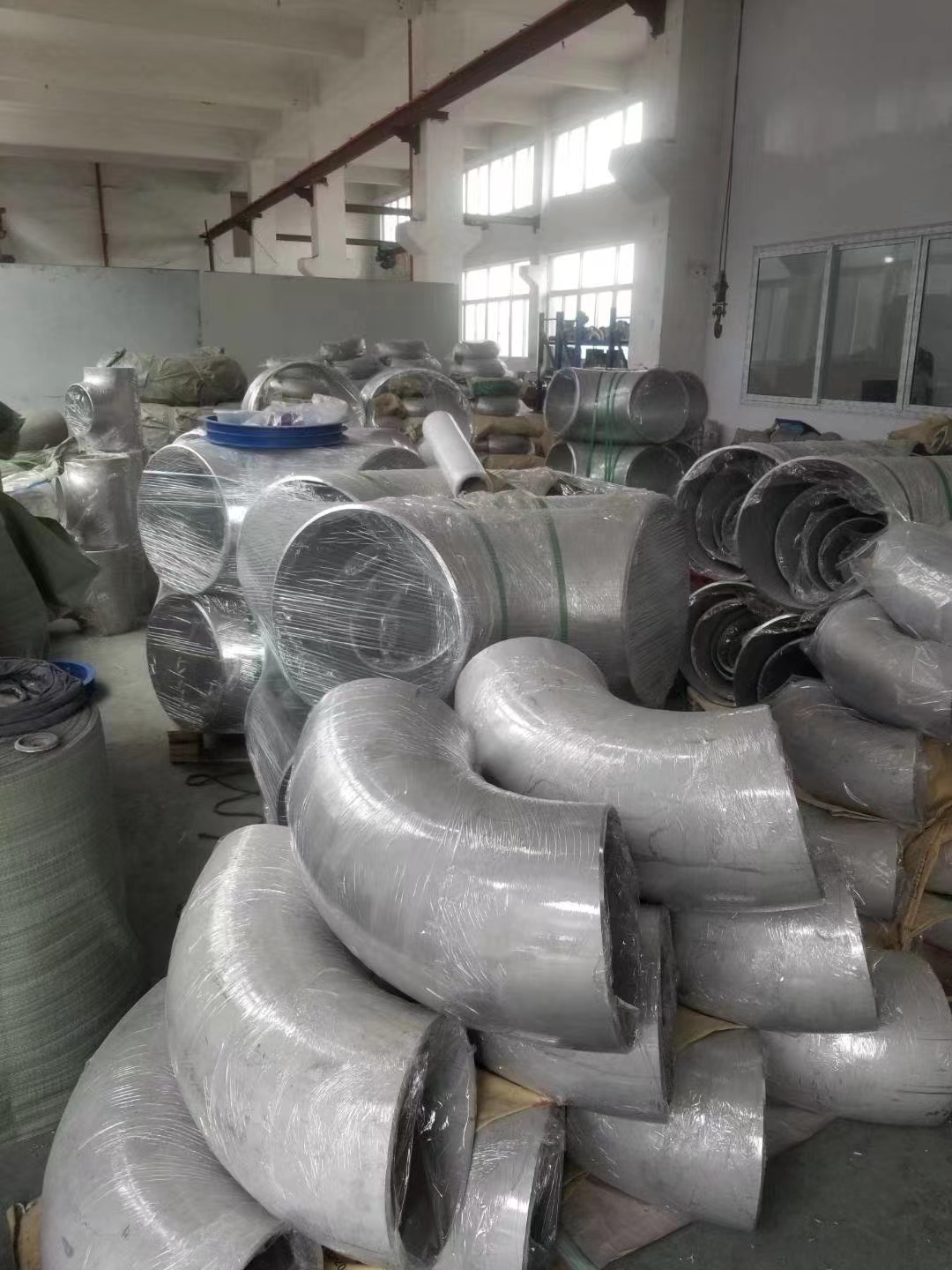

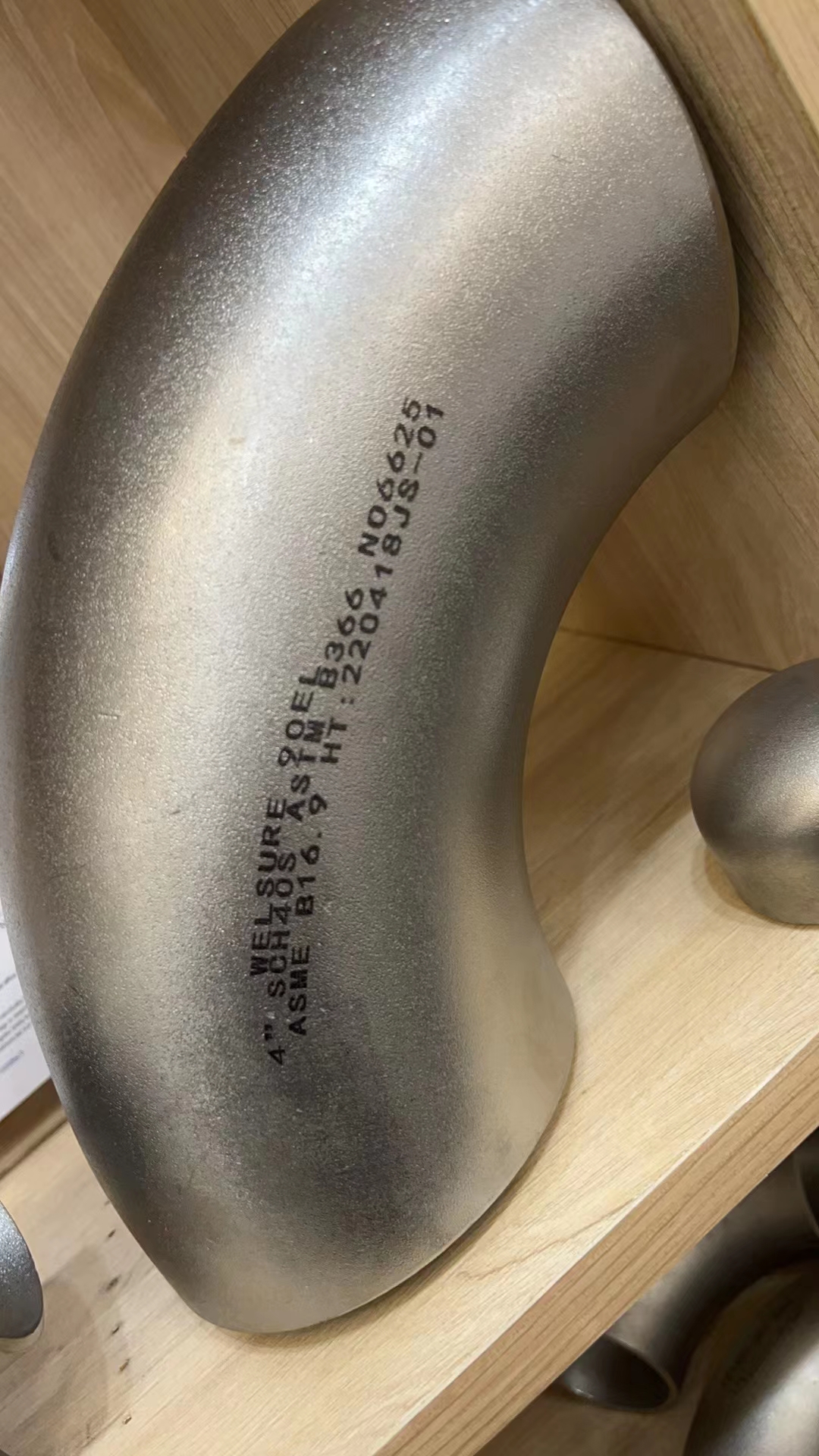

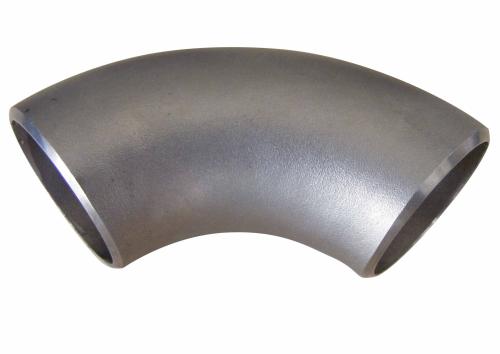

Butt-weld pipe elbows in carbon, alloy, and stainless steel manufactured to ASME B16.9 and ASME B16.28. Available in 45°, 90°, and 180° configurations; short-radius (1D) and long-radius (1.5D) from ½" through 24" seamless, and 4" through 72" in fabricated welded construction. Wall thickness from Sch 10 through XXS; maximum wall 120 mm.
Applications
- → Oil & gas production and transfer lines — direction changes in flowlines and trunk pipelines
- → Petrochemical and refinery piping — high-temperature process piping in ASTM A234 alloy grades
- → Subsea pipeline laterals — 90° LR elbows for riser base tie-ins and J-tube entries
- → Power plant steam and feedwater systems — alloy grades WP11 and WP22 for elevated temperature
- → LNG and cryogenic service — low-temperature steel A402 WPL 3 and WPL 6 for cold lines
- → Offshore platform and FPSO process piping — stainless A403 grades for corrosive service
- → Large-diameter water mains and desalination distribution — welded elbows DN400–DN1800
- → Shipbuilding and marine piping — duplex and austenitic stainless steel
Standards & Certifications
- ASME B16.9 — Factory-made wrought buttwelding fittings — dimensional standard for LR elbows
- ASME B16.28 — Short-radius elbows and returns (SR = 1D), wrought steel
- MSS SP-75 — High-strength buttwelding fittings for WPHY 42–70 high-yield grades
- ASTM A234 — Wrought carbon and alloy steel fittings — WPB, WPC, WP1, WP11, WP22, WP91
- ASTM A403 — Wrought austenitic stainless steel fittings — WP304, WP304L, WP316, WP316L, WP321, WP347
- ASTM A402 — Low-temperature steel fittings — WPL 3 and WPL 6 for cryogenic service
- ASTM A860 — High-strength fittings — WPHY 42–70 for high-pressure pipeline service
- EN 10204 3.1 — Mill test certificate for full material traceability
Materials
| Material Category | ASTM / ASME Grades |
|---|---|
| Carbon steel | ASTM A234 WPB, WPC |
| Alloy steel | ASTM A234 WP1, WP12, WP11, WP22, WP5, WP91, WP911 |
| Stainless steel | ASTM A403 WP304/304L/304H, WP316/316L/316H, WP321/321H, WP347/347H |
| Low-temperature steel | ASTM A402 WPL 3, WPL 6 |
| High-performance | ASTM A860 WPHY 42, 46, 52, 60, 65, 70 |
Supply Enquiry — Pipe Elbow
Tell us your standard, size, wall thickness, material grade, and delivery port. We will respond within one business day with availability and lead time.
