Cold-rolled Plates & Coils

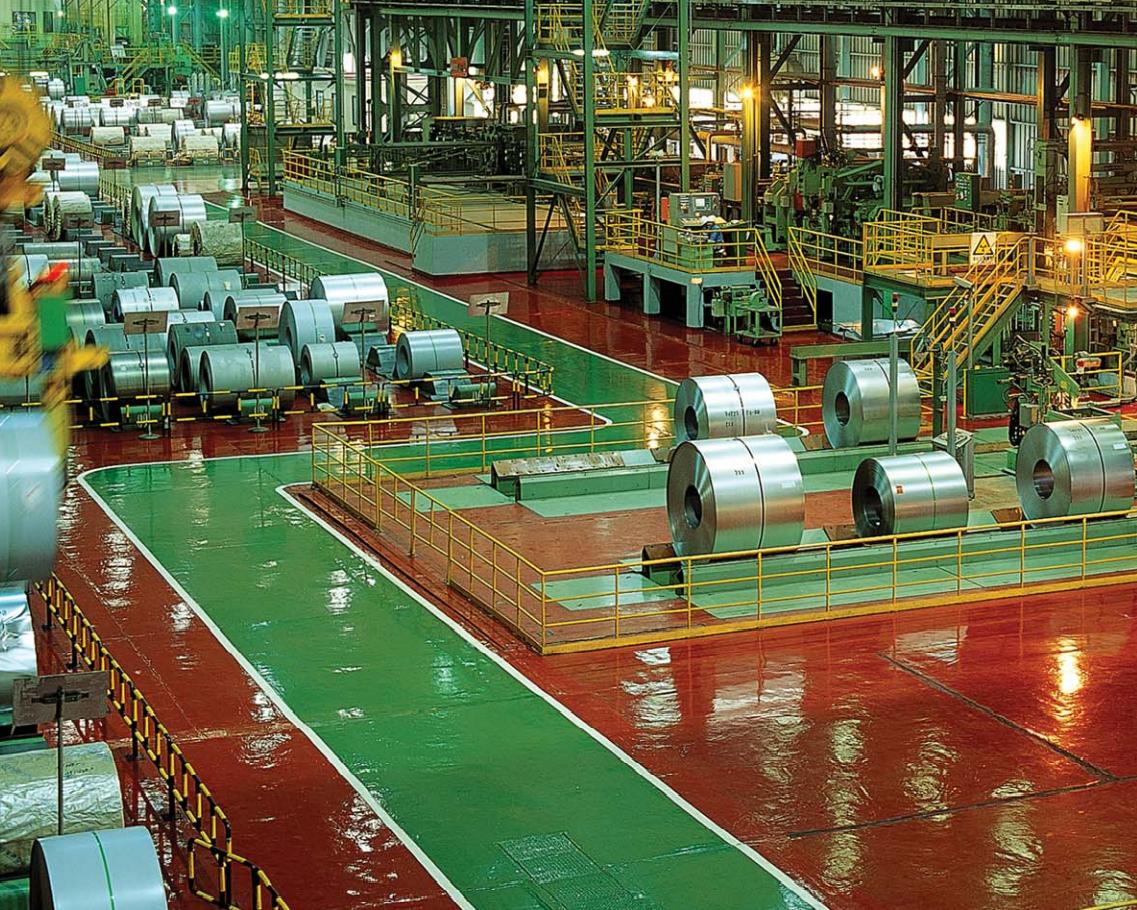

ZC's cold-rolled products facility has an annual capacity of 2.6 million tons, equipped with pickling, continuous annealing, silicon steel, zinc/aluminium coating, and tin coating lines supplied by SIEMAG, CMI, and TMEIC. Main products — coated strip, galvanized strip, non-oriented silicon strip, annealed strip, cold-rolled coil, and hot-rolled pickled coil — serve automotive structures, household appliances, construction, food and beverage packaging, and electrical steel applications.

Applications

→ Automotive structures — body panels, chassis components, and reinforcement members
→ Household appliances — outer panels and structural parts for white goods
→ Construction steel — profiles, purlins, and cladding sheets
→ Food and beverage packaging — tin-coated strip for can manufacturing
→ Electrical steel — non-oriented silicon strip for motor cores and transformers

Cold-rolled Steel Grades

Steel Type	Grade	Application
Cold-harden coil	SPCC-1B, SPCC-1D, SPCD-1B, SPCD-1D, SPCE-1B, SPCE-1D	—
Cold-rolled low carbon steel	DC01	Common
Cold-rolled low carbon steel	DC03	Drawing
Cold-rolled low carbon steel	DC04	Deep drawing
Cold-rolled low carbon steel	DC05	Deep drawing
Cold-rolled low carbon steel	DC06	Ultra deep drawing
Phosphorus high-strength steel	P175	Drawing
Phosphorus high-strength steel	P205	Common
Phosphorus high-strength steel	P250	Structure
Bake-hardening steel	CR140BH	Deep drawing
Bake-hardening steel	CR180BH	Deep drawing or drawing
Bake-hardening steel	CR220BH	Drawing or common
Bake-hardening steel	CR260BH	Common or structure
Bake-hardening steel	CR300BH	Structure
Flux-cored wire steel	HS1, HS2, HS3	Flux-core
Carbon structural steel	08Al	Drawing or common
Carbon structural steel	10, 20, 30, 40, 50	Structure
Low-alloy structural steel	HC260LA, HC300LA, HC340LA	Structure
Low-alloy structural steel	HC380LA, HC420LA	Structure or intensity structure
Battery shell steel	DCK	Automobile battery shell
Hot-rolled section steel	1500HS	Automobile structural component

Specific grade availability, temper, surface finish, and coil dimensions (width, inner diameter, coil weight) are quoted per order. Contact ZC with your application requirements.

Specifications & Delivery Conditions

Surface Finish & Delivery Condition

Condition	Description	Typical Grades
2D (full hard)	As-cold-rolled — matte surface, high hardness; not for deep drawing	DC01, SPCC
2B (annealed)	Continuous annealed and skin-passed — smooth, semi-bright; most common delivery	DC01–DC06, BH grades
BA (bright anneal)	Annealed in controlled atmosphere — mirror-bright; no pickling marks	DC04, DC05, DC06
Skin-passed (SP)	Light temper pass on annealed coil — improved flatness, suppressed yield-point elongation	DC01–DC04, BH grades
GI / GL (hot-dip galvanised)	Zinc or Zn-Al alloy coated — minimum 100–275 g/m² coating weight	DX51D, DX53D, DX54D
EG (electrogalvanised)	Electrolytic zinc coating — thin, uniform; excellent paintability	DC01-EG, automotive grades
Tin-coated (ETP/TFS)	Electrolytic tin or tin-free steel for food-grade packaging	T1–T5, DR8, TFS
Non-oriented silicon (CRNO)	Insulated silicon steel for motor cores and small transformers	W470–50A, W600–50A

Coil Dimensional Range

Thickness 0.2 mm – 3.0 mm (cold-rolled); 0.4 mm – 2.5 mm (coated)

Width 600 mm – 1,900 mm (slit widths from 20 mm on request)

Coil inner diameter 508 mm or 610 mm

Coil outer diameter Up to 2,000 mm

Coil weight Up to 30 tonnes per coil; lighter coils by slitting

Sheet / cut-to-length Available per order — tolerance ±1 mm on length and width

Thickness tolerance per EN 10131 (normal / special); width tolerance per EN 10131 Table 6. Flatness guaranteed per EN 10130 Annex A. Coil dimensions, edge condition (mill edge / slit edge), and oiling (dry / light oil / heavy oil) quoted per order.

Request a Quote — Cold-rolled Plates & Coils

Tell us your grade, surface finish, dimensions, quantity, and delivery port. We respond within one business day.
